Handlebars - Master cil. for Liberty 4T 3V ie E3 from 2014

Free shipping for all orders to United Kingdom over £150! See conditions.

Handlebars - Master cil.

1

Handlebar with U.P.

6725084

Not Available

2

Hex socket screw

655554

£1,97 Unit Price incl. VAT

3

Flat elastic washer with internal toothing 17x10,3x2

012543

Not Available

4

Flat washer

178790

£1,64 Unit Price incl. VAT

5

Nut M10

015330

Not Available

6A

Throttle control sleeve assembly

667988

Not Available

6A

Throttle control sleeve assembly

CM090703

£33,01 Unit Price incl. VAT

6B

Throttle control sleeve assembly

1C000844

£44,78 Unit Price incl. VAT

7

RH hand grip

666513

£13,40 Unit Price incl. VAT

8

Ring

666129

£1,84 Unit Price incl. VAT

9

Throttle opening transmission

1C000159

£18,38 Unit Price incl. VAT

9

Gas lever transmission

667989

Not Available

10

Complete left hand grip

6665104

£15,80 Unit Price incl. VAT

11

Grip, l.h.

666511

£14,20 Unit Price incl. VAT

12

Ring

666129

£1,84 Unit Price incl. VAT

13

Left hand grip with rear brake lever

651034

£27,22 Unit Price incl. VAT

14

Rear brake control lever

781120

£18,56 Unit Price incl. VAT

15

Front brake hydraulic pump Heng Tong

CM085402

£120,97 Unit Price incl. VAT

16

Brake lever (Heng Tong)

666558

£11,12 Unit Price incl. VAT

17

Throttle opening transmission

1C000752

Not Available

18

Throttle closing transmission

1C000874

£14,33 Unit Price incl. VAT

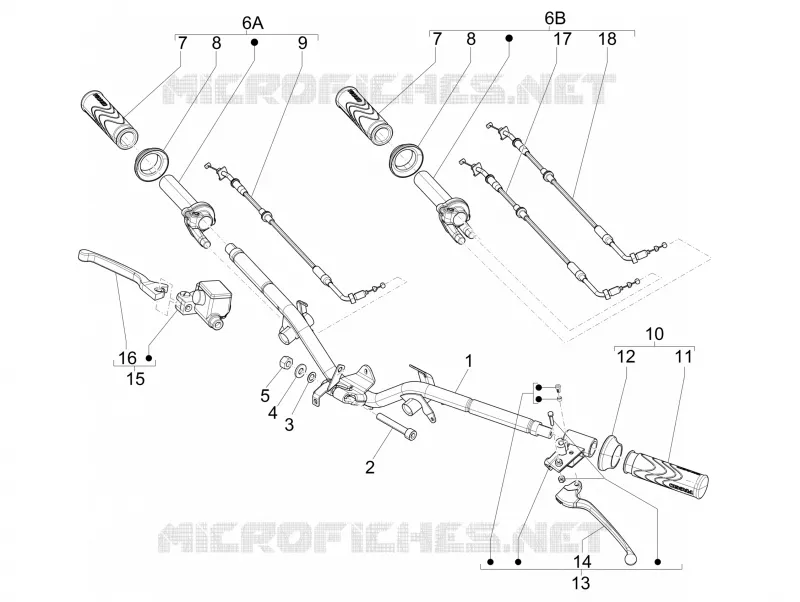

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
