Cylinder-piston-wrist pin unit for Liberty 4T E3 from 2006

Free shipping for all orders to United Kingdom over £150! See conditions.

Cylinder-piston-wrist pin unit

1

Complete piston (Cast-iron) Cat.D

8319740004

£124,04 Unit Price incl. VAT

1

Complete piston (Cast-iron) Cat.A

8319740001

£124,04 Unit Price incl. VAT

1

Complete piston (Cast-iron) Cat.C

8319740003

£124,04 Unit Price incl. VAT

1

Complete piston (Aluminium) Cat.D

8271120004

£95,23 Unit Price incl. VAT

1

Complete piston (Aluminium) Cat.B

8271120002

£95,23 Unit Price incl. VAT

1

Complete piston (Cast-iron) Cat.B

8319740002

£124,04 Unit Price incl. VAT

1

Complete piston (Aluminium) Cat.C

8271120003

£95,23 Unit Price incl. VAT

1

Complete piston (Aluminium) Cat.A

8271120001

£95,23 Unit Price incl. VAT

2

Piston pin

482335

£13,97 Unit Price incl. VAT

3

Snap ring

963486

£0,58 Unit Price incl. VAT

4

Compression ring d.57x1

485779

£21,97 Unit Price incl. VAT

5

Oil scraper ring d.57x2,5

485914

£20,21 Unit Price incl. VAT

6

Oil scraper ring d.57x1

486362

£39,46 Unit Price incl. VAT

7

Cylinder assembly-piston-pin (Cast-iron)

831975

£337,87 Unit Price incl. VAT

7

Cylinder assembly-piston-pin (Aluminium)

827113

Not Available

8

Cylinder base gasket 0,6 mm

875113

£14,40 Unit Price incl. VAT

8

Cylinder base gasket 0,4 mm

875112

£14,80 Unit Price incl. VAT

8

Cylinder base gasket 0,8 mm

828148

Not Available

8

Cylinder base gasket 0,6 mm

828147

Not Available

8

Cylinder base gasket 0,4 mm

828146

Not Available

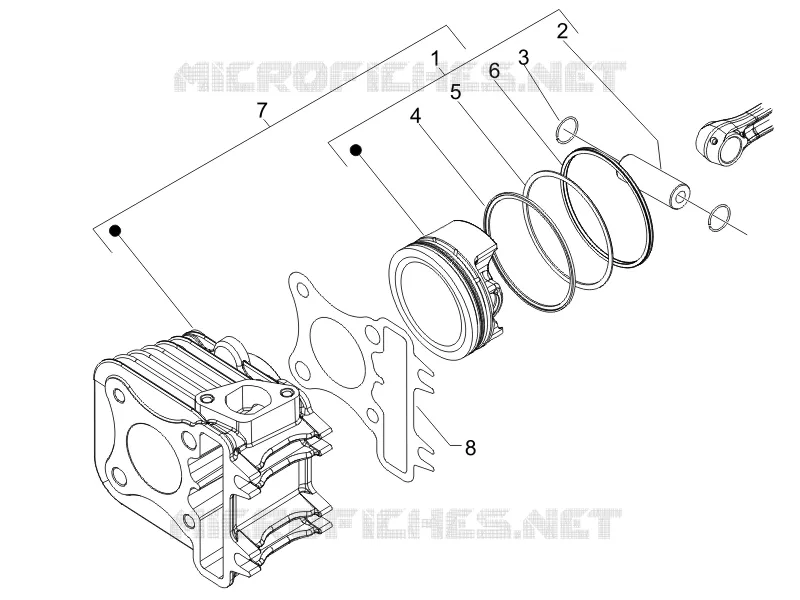

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
