Engine displacement
125
2
Model
MEDLEY
3
Year
2018
4
Trim
Medley 4T ie ABS
5
Parts Catalog
Cylinder-piston-wrist pin unit
6
Parts Diagram
Parts Catalog
ENGINE ASSEMPLY
by
LOCKS
Cylinder-piston-wrist pin unit
1
1
2
3
4
4
4
4
4
4
4
4
5
5
5
6
6
7
8
9
10
10
10
1
Cylinder-piston-wrist pin assy.
1A0067725
Not Available
1
Groupe cylindre - piston - axe
1A015138
Not Available
2
Screw w/ flange M6x16
1A004277
£1,82 Unit Price incl. VAT
3
Flat washer
1A004280
£1,62 Unit Price incl. VAT
4
Complete piston assembly
1A0067710D
Not Available
4
Piston complet
1A0155460B
Not Available
4
Piston complet
1A0155460C
Not Available
4
Piston complet
1A0155460A
Not Available
4
Complete piston assembly
1A0067710A
Not Available
4
Piston complet
1A0155460D
£82,98 Unit Price incl. VAT
4
Complete piston assembly
1A0067710C
Not Available
5
Piston pin
1A008021R
£12,76 Unit Price incl. VAT
5
Axe
1A014567
£11,88 Unit Price incl. VAT
5
Piston pin
1A001945
Not Available
6
Circlip
B015602
£2,93 Unit Price incl. VAT
7
Compression ring 1° cava
879475
£13,08 Unit Price incl. VAT
8
Compression ring 2° cava
879476
£13,08 Unit Price incl. VAT
9
Oil scraper ring 3° cava
B016862
£13,08 Unit Price incl. VAT
10
Crankcase/cylinder gasket 0,8 mm
1A000752
£11,66 Unit Price incl. VAT
10
Crankcase/cylinder gasket 0,6 mm
1A000751
£11,72 Unit Price incl. VAT
10
Crankcase/cylinder gasket 0,4 mm
1A000750
£11,06 Unit Price incl. VAT

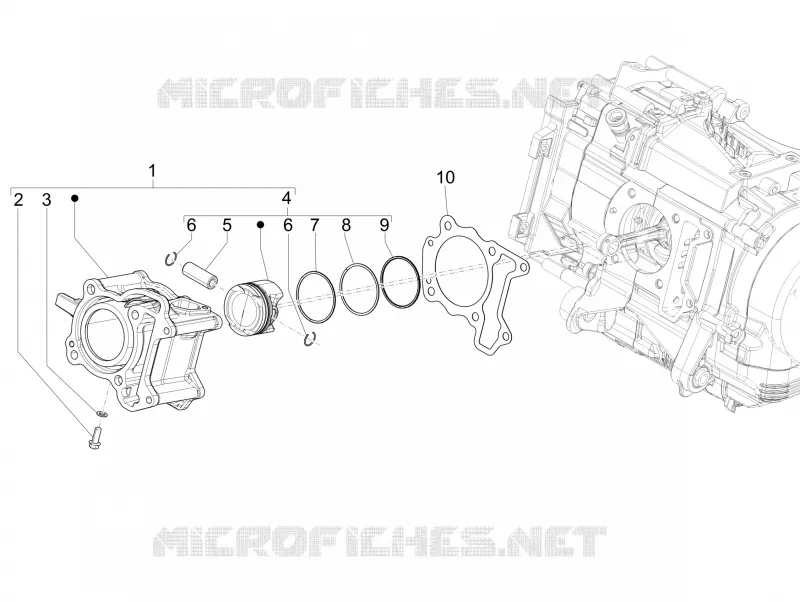

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
