1
Engine displacement
350
2
Model
BEVERLY
3
Year
2017
4
Trim
Beverly 4T ST ie ABS E4
5
Parts Catalog

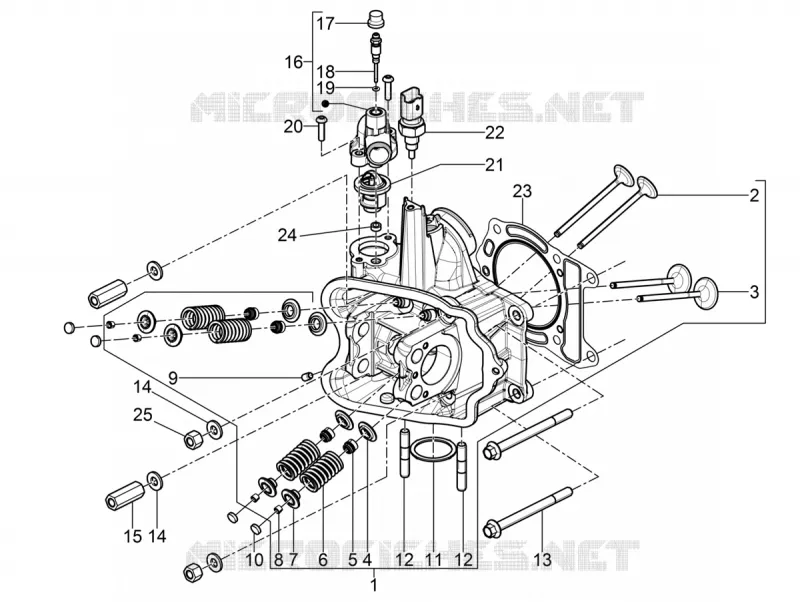

Head unit - Valve
6
Parts Diagram
Parts Catalog
Air filter
by
Remote control switches - Battery - Horn
Head unit - Valve
1
2
3
4
5
6
7
8
9
10
11
12
12
13
14
14
15
16
17
18
19
20
21
22
23
24
25
1
Cylinder head assembly
1A007860
£547,09 Unit Price incl. VAT
2
Exaust valve
880602
£51,20 Unit Price incl. VAT
3
Valve, in
880601
£20,71 Unit Price incl. VAT
4
Lower cap
878859
£3,78 Unit Price incl. VAT
5
Valve gasket ring
436438
£11,03 Unit Price incl. VAT
6
Valve spring
878860
£6,26 Unit Price incl. VAT
7
Upper cap
879813
£4,55 Unit Price incl. VAT
8
Valve half-cone
285846
£1,98 Unit Price incl. VAT
9
Plug M6x10
842360
£2,20 Unit Price incl. VAT
10
Calibrated pad 3,40 mm
CM163221
£8,33 Unit Price incl. VAT
10
Calibrated pad 3,00 mm
CM163213
£7,40 Unit Price incl. VAT
10
Calibrated pad 2,75 mm
CM163208
£7,22 Unit Price incl. VAT
10
Calibrated pad 2,85 mm
CM163210
£7,38 Unit Price incl. VAT
10
Calibrated pad 2,90 mm
CM163211
£7,39 Unit Price incl. VAT
10
Calibrated pad 2,65 mm
CM163206
£7,32 Unit Price incl. VAT
10
Calibrated pad 3,05 mm
CM163214
£7,39 Unit Price incl. VAT
10
Calibrated pad 2,45 mm
CM163202
£8,51 Unit Price incl. VAT
10
Calibrated pad 3,30 mm
CM163219
£8,33 Unit Price incl. VAT
10
Calibrated pad 3,25 mm
CM163218
£8,39 Unit Price incl. VAT
10
Calibrated pad 2,55 mm
CM163204
£8,33 Unit Price incl. VAT
10
Calibrated pad 3,35 mm
CM163220
£8,39 Unit Price incl. VAT
10
Calibrated pad 2,70 mm
CM163207
£7,34 Unit Price incl. VAT
10
Calibrated pad 2,95 mm
CM163212
£7,39 Unit Price incl. VAT
10
Calibrated pad 2,50 mm
CM163203
£8,51 Unit Price incl. VAT
10
Calibrated pad 2,60 mm
CM163205
£8,23 Unit Price incl. VAT
10
Calibrated pad 2,80 mm
CM163209
£7,30 Unit Price incl. VAT
10
Calibrated pad 3,20 mm
CM163217
£8,41 Unit Price incl. VAT
10
Calibrated pad 3,10 mm
CM163215
£7,39 Unit Price incl. VAT
10
Calibrated pad 2,40 mm
CM163201
£8,46 Unit Price incl. VAT
10
Calibrated pad 3,15 mm
CM163216
£8,51 Unit Price incl. VAT
11
Exhaust pipe gasket
879662
£2,90 Unit Price incl. VAT
12
Stud bolt
1A003632R
£2,35 Unit Price incl. VAT
13
Screw w/ flange
B013593
£2,69 Unit Price incl. VAT
14
Flat washer
B014079
£1,09 Unit Price incl. VAT
15
High hexagonal nut
B013371
£4,03 Unit Price incl. VAT
16
Thermostat cover
B018147
£64,54 Unit Price incl. VAT
17
Bleed valve cap
063435
Not Available
18
Bleed screw
845605
£15,49 Unit Price incl. VAT
19
Gasket
297027
£1,51 Unit Price incl. VAT
20
Torx Screw M5x20
B016808
£1,27 Unit Price incl. VAT
21
Thermostat
82831R5
£69,52 Unit Price incl. VAT
22
Temperature gauge
640485
Not Available
23
Cylinder gasket/head
B015183
£15,54 Unit Price incl. VAT
24
Packing
878906
£4,99 Unit Price incl. VAT
25
Nut
015335
Not Available

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
