1
Engine displacement
150
2
Model
X8
3
Year
2007
4
Trim
X8 Street Euro 2
5
Parts Catalog
Handlebars - Master cil.
6
Parts Diagram
Parts Catalog
Front wheel
by
Cylinder head cover
Handlebars - Master cil.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
19
19
20
20
1
Handlebar
5994065
Not Available
2
Flat elastic washer with internal toothing 17x10,3x2
012543
Not Available
3
Nut M10
015330
Not Available
4
Flat washer
178790
£1,64 Unit Price incl. VAT
5
screw
223605
Not Available
6
Elastic spring
231590
£0,60 Unit Price incl. VAT
7
Hose
CM060951
Not Available
8
COMPLETE THROTTLE CONTROL TRANSMISSION
CM073302
Not Available
9
Screw with bushing
123394
£2,69 Unit Price incl. VAT
10
Grip, l.h.
271452
£11,24 Unit Price incl. VAT
11
Grip, r.h.
271453
£7,04 Unit Price incl. VAT
12
Ring 38,3x27x1,2
562923
£0,48 Unit Price incl. VAT
13
Right brake hydraulic pump
CM076305
Not Available
14
Brake lever Heng Tong
600475
£18,19 Unit Price incl. VAT
15
Bracket
600476
£20,52 Unit Price incl. VAT
16
LH BRAKE LEVER
647544
Not Available
17
BRAKE LEVER
647552
Not Available
19
End terminal
271433
£23,57 Unit Price incl. VAT
20
screw M6x55
271434
Not Available
21
Screw with nut
265249
£3,55 Unit Price incl. VAT
22
Spring
267948
£0,96 Unit Price incl. VAT

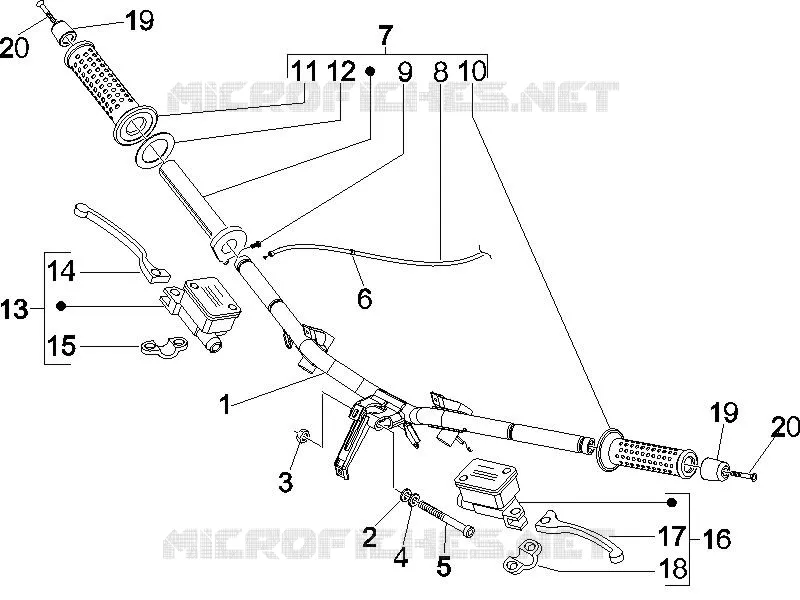

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
