1
Engine displacement
150
2
Model
X8
3
Year
2007
4
Trim
X8 Street Euro 2
5
Parts Catalog
Driven pulley
6
Parts Diagram
Parts Catalog
Secondary air box
by
Silencer
Driven pulley
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
17
18
19
20
21
22
23
24
1
Pulley
82743R
Not Available
2
Complete centrifugal clutch assembly
CM144002
Not Available
3
Gasket ring
006410
Not Available
4
Gasket
430585
£0,88 Unit Price incl. VAT
5
Cup
431093
Not Available
6
Ring nut
433232
£13,28 Unit Price incl. VAT
7
Clutch side cap
487936
£8,76 Unit Price incl. VAT
8
Variator spring
825726
Not Available
9
Adjustable pulley, half
827499
Not Available
10
Gasket ring
431089
£8,58 Unit Price incl. VAT
11
Guide pin L=12,5
828717
£1,50 Unit Price incl. VAT
12
Fixed driven half pulley
830580
£97,84 Unit Price incl. VAT
13
Snap ring
483226
£1,87 Unit Price incl. VAT
14
Radial bearing 17x30
483261
Not Available
14
Bearing 17x30x7
82753R
£21,72 Unit Price incl. VAT
15
Roller cage 20x29x18
82518R
£29,20 Unit Price incl. VAT
17
Fan
825430
£39,24 Unit Price incl. VAT
18
Clutch drum
8440494
£74,72 Unit Price incl. VAT
18
Clutch drum
844049
Not Available
19
Flat washer 22x12,1x1
274246
£1,00 Unit Price incl. VAT
20
Nut M12x1.25
486324
£1,04 Unit Price incl. VAT
21
Washer Ø5,3xØ10x0,5
006975
Not Available
22
Flat washer 5,3x14x1
060201
Not Available
23
screw M5x16
259151
£0,96 Unit Price incl. VAT
24
Snap ring
242364
£2,42 Unit Price incl. VAT

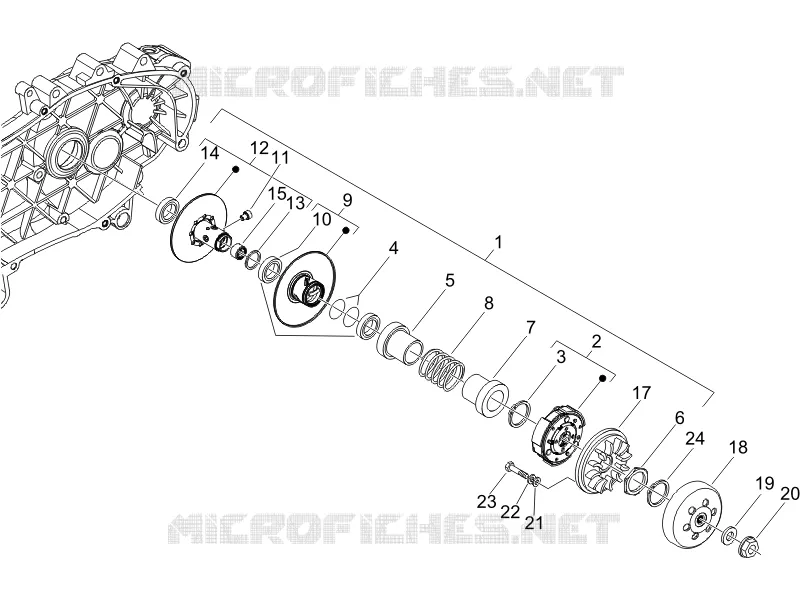

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
