1
Engine displacement
400
2
Model
X8
3
Year
2006
4
Trim
X8 ie Euro 3
5
Parts Catalog

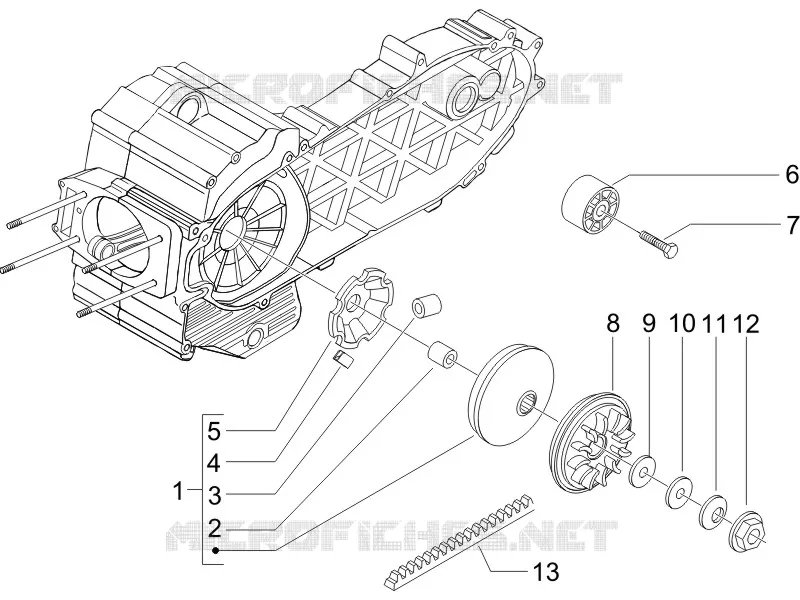

Driving pulley
6
Parts Diagram
Parts Catalog
Main cable harness
by
Handlebars - Master cil.
Driving pulley
1
2
3
4
5
6
7
8
9
10
11
12
13
1
Half-pulley assy., driving
849913
Not Available
2
Spacer
825381
Not Available
3
Pin roller
849914
£3,95 Unit Price incl. VAT
4
Sliding block
842175
£1,20 Unit Price incl. VAT
5
Roller contrast
830901
Not Available
6
Damping pulley
834304
£74,80 Unit Price incl. VAT
7
Special screw M8x25
829693
£3,50 Unit Price incl. VAT
8
Fixed driving half pulley
832697
£55,08 Unit Price incl. VAT
9
Plain washer 18.1x42x3
829205
£3,95 Unit Price incl. VAT
10
Flat washer 22.1x36x2
829203
£2,30 Unit Price incl. VAT
11
Belleville spring
829251
£4,04 Unit Price incl. VAT
12
Nut M18x1,5
829232
£4,69 Unit Price incl. VAT
13
V-belt
832738
£127,36 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
