1
Engine displacement
400
2
Model
X8
3
Year
2006
4
Trim
X8 ie Euro 3
5
Parts Catalog

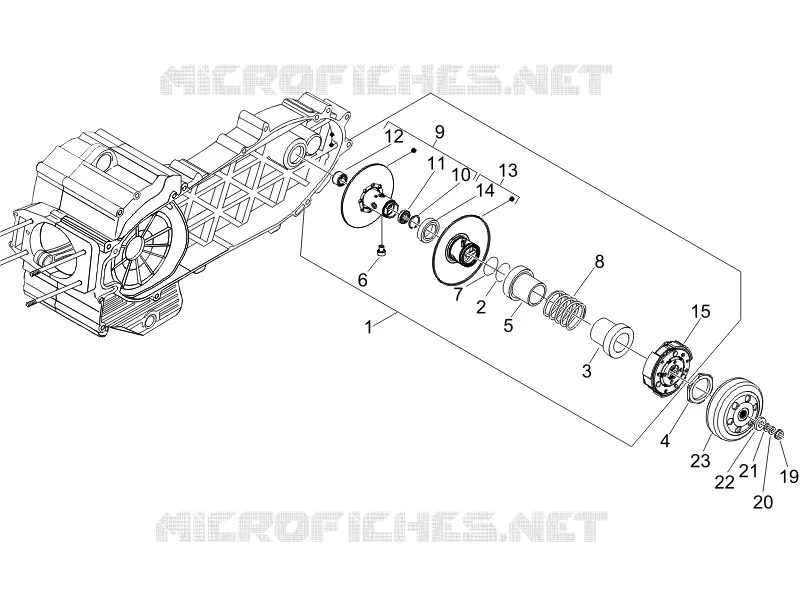

Driven pulley
6
Parts Diagram
Parts Catalog
Windshield - Glass
by
Rear headlamps - Turn signal lamps
Driven pulley
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
19
20
21
22
23
1
Secondary pulley
848843
Not Available
2
Gasket
825237
£1,96 Unit Price incl. VAT
3
New cup type
825384
£3,79 Unit Price incl. VAT
4
Ring nut 44x1
825385
£13,96 Unit Price incl. VAT
5
Cup
828974
£13,54 Unit Price incl. VAT
6
Clutch bush pin
828978
Not Available
7
Gasket
828984
£3,29 Unit Price incl. VAT
8
Spring
831098
£38,83 Unit Price incl. VAT
9
Fixed driven half pulley
832774
Not Available
10
Snap ring
825382
£4,81 Unit Price incl. VAT
11
Radial bearing
82627R
£26,41 Unit Price incl. VAT
12
Roller cage 25x33x18
829808
£31,60 Unit Price incl. VAT
13
Adjustable pulley, half
846695
Not Available
14
Oil seal 50x57x5
825239
£8,40 Unit Price incl. VAT
15
Centrifugal clutch assy 5M
848844
Not Available
16
Circlip
006412
Not Available
17
Damper drift
844621
Not Available
19
Nut M14x1,5
827116
£2,12 Unit Price incl. VAT
20
Flat washer
840319
£1,85 Unit Price incl. VAT
21
Washer
840320
£2,39 Unit Price incl. VAT
22
Spacer 26x17x3
825763
Not Available
23
Complete clutch drum
825176
Not Available

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
