Engine displacement
250
2
Model
X9
3
Year
2006
4
Trim
X9 Evolution
5
Parts Catalog
Secondary air box
6
Parts Diagram
Parts Catalog
Air filter
by
Frame/bodywork
Secondary air box
1
2
2
3
5
6
7
8
10
11
12
13
14
15
16
17
18
19
20
21
23
24
25
1
Filter holder
840473
Not Available
2
screw M5x16
259151
£0,96 Unit Price incl. VAT
3
pipe
841558
£30,17 Unit Price incl. VAT
4
Screw w/ flange M6x14
833722
Not Available
5
Self-tap screw M3x20
258146
£0,65 Unit Price incl. VAT
6
Hose clamp
CM001905
£1,62 Unit Price incl. VAT
7
Spring plate M6
254485
£1,64 Unit Price incl. VAT
8
VALVE X9 200
840948
Not Available
9
SAS valve
82731R
Not Available
10
Screw w/ flange M6x30
289731
Not Available
11
Self locking nut M6
288245
£0,76 Unit Price incl. VAT
12
Flat washer 6,4x12x1
003056
Not Available
13
Flat washer 16x6,5x1,5
013880
Not Available
14
Spacer
842934
Not Available
15
Hose clamp
CM001904
£1,51 Unit Price incl. VAT
16
Hose clamp
CM002901
£0,62 Unit Price incl. VAT
17
Joint
840587
£6,73 Unit Price incl. VAT
18
Gasket
832059
£7,56 Unit Price incl. VAT
19
pipe
840585
£34,20 Unit Price incl. VAT
20
Intake pipe
843400
£9,26 Unit Price incl. VAT
21
CLAMP B125
CM017804
Not Available
23
screw
414835
Not Available
24
Filtering element
840476
Not Available
25
PLATE
840942
Not Available

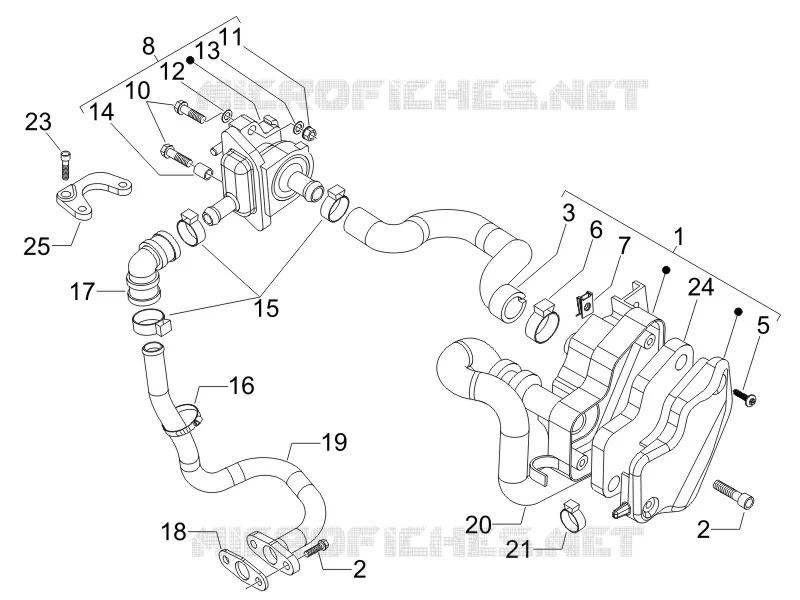

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
