Engine displacement
250
2
Model
X9
3
Year
2006
4
Trim
X9 Evolution
5
Parts Catalog
Rear suspension - Shock absorber/s
6

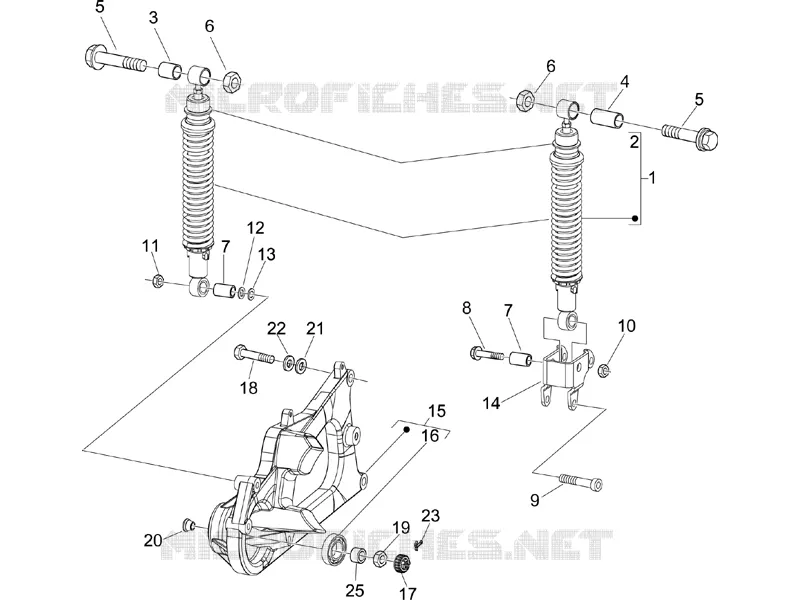

Parts Diagram
Parts Catalog
Swinging arm
by
Front wheel
Rear suspension - Shock absorber/s
1
2
3
4
5
5
6
6
7
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
25
1
SHOCK ABSORBER X9
56231R
£130,57 Unit Price incl. VAT
2
Housing
274860
Not Available
3
Spacer
597178
£3,76 Unit Price incl. VAT
4
Spacer
597179
£4,36 Unit Price incl. VAT
5
Screw m10x65
015594
Not Available
6
Self locking nut M10
232108
Not Available
6
Self locking nut M10
002440
Not Available
7
Bush
597149
£4,04 Unit Price incl. VAT
8
Hex screw M10x45
015578
Not Available
9
Hex socket screw M8x50
844483
£0,65 Unit Price incl. VAT
10
Nut M8
020008
Not Available
11
Self locking nut M10
232108
Not Available
12
Washer
016627
Not Available
13
Washer
709646
Not Available
14
LH clamp
598938
£18,61 Unit Price incl. VAT
15
SWINING ARM ASSY.
601260
£90,61 Unit Price incl. VAT
16
Ball bearing
82545R
£22,90 Unit Price incl. VAT
17
Nut hold cap
194423
Not Available
18
Hex socket screw M8x40
149104
£1,57 Unit Price incl. VAT
19
Nut M16x13
563728
£2,48 Unit Price incl. VAT
20
Wheel spacer
848039
£25,44 Unit Price incl. VAT
21
Washer
013776
Not Available
22
Spring washer
709047
£0,70 Unit Price incl. VAT
23
Split pin
012789
Not Available
24
Spacer L=228 mm
CM067803
£16,27 Unit Price incl. VAT
25
Spacer
597528
£7,33 Unit Price incl. VAT
