Parts Catalog
Rear cover - Splash guard
6

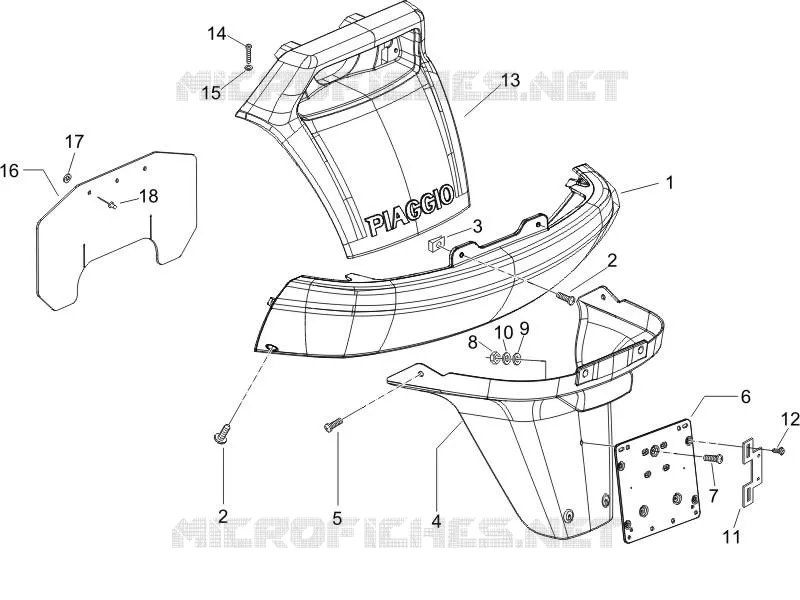

Parts Diagram
Parts Catalog
Helmet huosing - Undersaddle
by
Plates - Emblems
Rear cover - Splash guard
1
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1
Lower body side closure
57556800E8
Not Available
1
Lower body side closure
575568000P
Not Available
2
screw 4,2x19
258249
£0,73 Unit Price incl. VAT
3
Spring plate
CM017410
£0,71 Unit Price incl. VAT
4
Rear splash guard
57609800E8
Not Available
5
Screw M6x16
272836
£1,13 Unit Price incl. VAT
6
Number plate holder
584884
£31,69 Unit Price incl. VAT
7
screw M4x14
018591
Not Available
8
Nut M4
020104
Not Available
9
Flat washer 4,2x12x1
013763
Not Available
10
Flat washer 4,2x7,6x0,9
016404
Not Available
11
Number-plate extension
584877
£5,88 Unit Price incl. VAT
12
Plug screw
268596
£0,62 Unit Price incl. VAT
13
Covers
62043200EB
Not Available
13
RR CLOSING COVER X9 UNPAINTED
62043200ND
Not Available
13
COVER REAR SIDE CLOSURE
62043200EI
Not Available
13
Covers
6204320090
Not Available
13
Covers
62043200F2
£41,18 Unit Price incl. VAT
13
Rear tail lamp section
62043200DE
Not Available
13
Covers
62043200D9
Not Available
13
RR CLOSING COVER X9 UNPAINTED
6204320087
Not Available
13
RR CLOSING COVER X9 UNPAINTED
620432
£23,53 Unit Price incl. VAT
14
Special cap screw M6x50
018640
Not Available
15
Washer 6,2x18x2
013950
Not Available
16
Splash guard
576754
Not Available
17
Washer 4,5x12x1
016670
Not Available
18
Rivet
252099
£1,24 Unit Price incl. VAT
19
Cover
577249000C
£49,85 Unit Price incl. VAT
20
screw 4,2x19
258249
£0,73 Unit Price incl. VAT
21
Spring plate
CM017410
£0,71 Unit Price incl. VAT
