1
CENTRAL COVER
575558
Not Available
2
Cam lever
576626
£2,20 Unit Price incl. VAT
3
SERVICE DOOR
575559
Not Available
4
Square
299689
Not Available
5
Plate
575605
Not Available
6
Maintenance
620491
£3,46 Unit Price incl. VAT
7
Spring
575604
£2,70 Unit Price incl. VAT
8
Spring
621507
£7,58 Unit Price incl. VAT
9
Self tapping screw
297498
£0,60 Unit Price incl. VAT
10
TBCIC Screw
270793
£0,52 Unit Price incl. VAT
11
Knurled bushing
830056
£1,27 Unit Price incl. VAT
12
Footrest
57799900E8
Not Available
13
Spark plug insp. door
57557700E8
Not Available
14
Screw M4,2x13
259349
£0,79 Unit Price incl. VAT
15
Spring plate
CM017410
£0,71 Unit Price incl. VAT
16
Footrest
62162300E8
Not Available
17
Spark plug insp. door
62162400E8
Not Available
18
Screw M4,2x13
259349
£0,79 Unit Price incl. VAT
19
Spring plate
CM017410
£0,71 Unit Price incl. VAT
20
Spring plate
CM017410
£0,71 Unit Price incl. VAT
21
Spring plate M6
254485
£1,64 Unit Price incl. VAT
22
screw 4,2x19
258249
£0,73 Unit Price incl. VAT
23
TBCIC Screw
270793
£0,52 Unit Price incl. VAT
24
Screw m6x30
271891
£1,28 Unit Price incl. VAT
25
Metric screw TBC
575249
£0,62 Unit Price incl. VAT
26
Lh mat
575597
£35,77 Unit Price incl. VAT
27
Rh mat
575598
Not Available
28
Pin
CM011101
£2,66 Unit Price incl. VAT
29
screw 4,2x19
258249
£0,73 Unit Price incl. VAT
30
Footrest
575578
£35,27 Unit Price incl. VAT
31
Footrest
575579
£35,27 Unit Price incl. VAT
32
TBCIC Screw
270793
£0,52 Unit Price incl. VAT

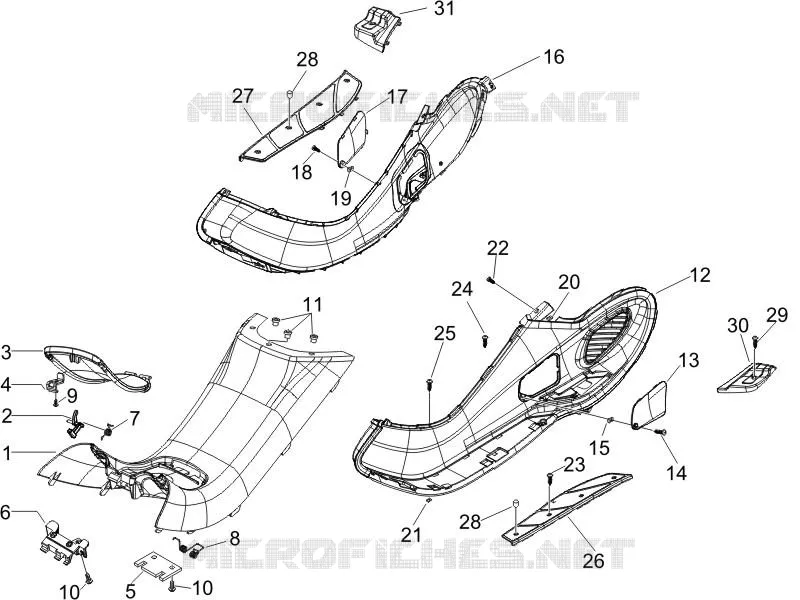

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
