1
Engine displacement
250
2
Model
X9
3
Year
2006
4
Trim
X9 Evolution
5
Parts Catalog

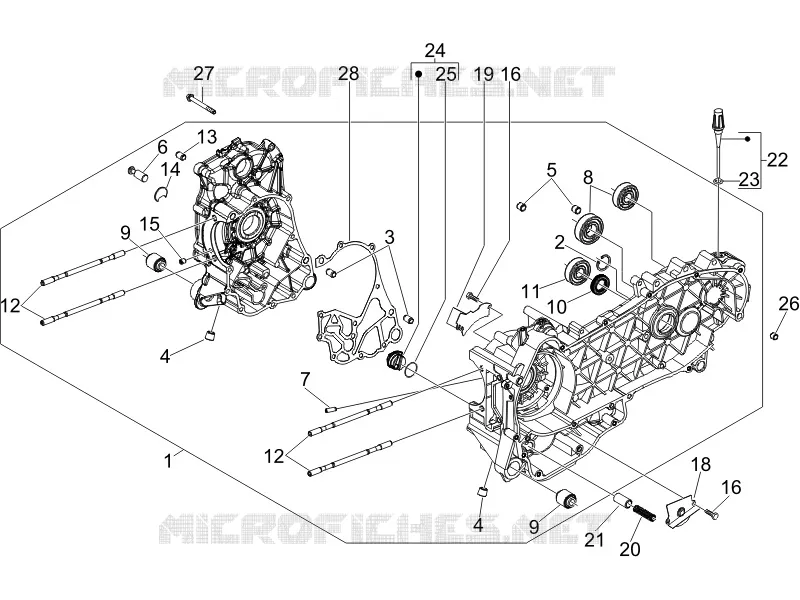

Crankcase
6
Parts Diagram
Parts Catalog
Engine, assembly
by
Crankshaft
Crankcase
1
2
3
4
4
5
6
7
8
9
9
10
11
12
12
13
14
15
16
16
18
19
20
21
22
23
24
25
26
27
28
1
Crankshaft cpl.,cat.1
8747940002
Not Available
1
Crankshaft cpl.,cat.1
8462415001
Not Available
1
Crank-case
8409515001
Not Available
1
Crankshaft cpl.,cat.1
8462415002
Not Available
1
Crankshaft cpl.,cat.1
8747940001
Not Available
1
Crank-case
8409515002
Not Available
2
Circlip 25x26.9x1.2
000674
Not Available
3
Pin 6,5x9,5x15
239388
Not Available
4
Plug M12x1,5
411311
Not Available
5
Locating dowel Ø11x10
478115
Not Available
6
Springs fixing pin
483785
£4,82 Unit Price incl. VAT
7
Nozzle
484034
£7,96 Unit Price incl. VAT
8
Radial ball bearing 15x42x13
485912
Not Available
9
Silent-block
486081
£9,73 Unit Price incl. VAT
10
Gasket ring
82539R
Not Available
10
Gasket ring 20-32-7
82878R
£12,89 Unit Price incl. VAT
11
Radial ball bearing 20x47x14
833701
Not Available
12
Stud bolt
840332
Not Available
12
Stud bolt
877285
Not Available
13
Pin 6,5x9,5x15
239388
Not Available
14
Cup
840489
£1,24 Unit Price incl. VAT
15
Nozzle D 1.1
844582
£7,64 Unit Price incl. VAT
16
Screw w/ flange M5x16
830061
£2,48 Unit Price incl. VAT
18
Lower oil bulkhead
483767
£10,06 Unit Price incl. VAT
19
Upper oil bulkhead
485047
£12,44 Unit Price incl. VAT
19
Half crankcase gasket
845212
Not Available
19
Gasket
875111
£16,03 Unit Price incl. VAT
20
Spring
485655
£1,13 Unit Price incl. VAT
21
Oil pressure valve
829661
£11,54 Unit Price incl. VAT
22
Complete oil level dipstick
832130
£5,47 Unit Price incl. VAT
23
Gasket ring 14,43x9,19x2,62
827085
£0,62 Unit Price incl. VAT
24
Filter door insert
845861
£10,25 Unit Price incl. VAT
25
Gasket
431065
£0,90 Unit Price incl. VAT
26
Locating dowel Ø7,5x12
277916
£6,38 Unit Price incl. VAT
27
screw M6x60
432142
Not Available
28
Half crankcase gasket
845212
Not Available

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
