1
Engine displacement
125
2
Model
NEXUS
3
Year
2009
4
Trim
Nexus ie E3
5
Parts Catalog
Windshield - Glass
6
Parts Diagram
Parts Catalog
Fork/steering tube - Steering bearing unit
by
Rear cover - Splash guard

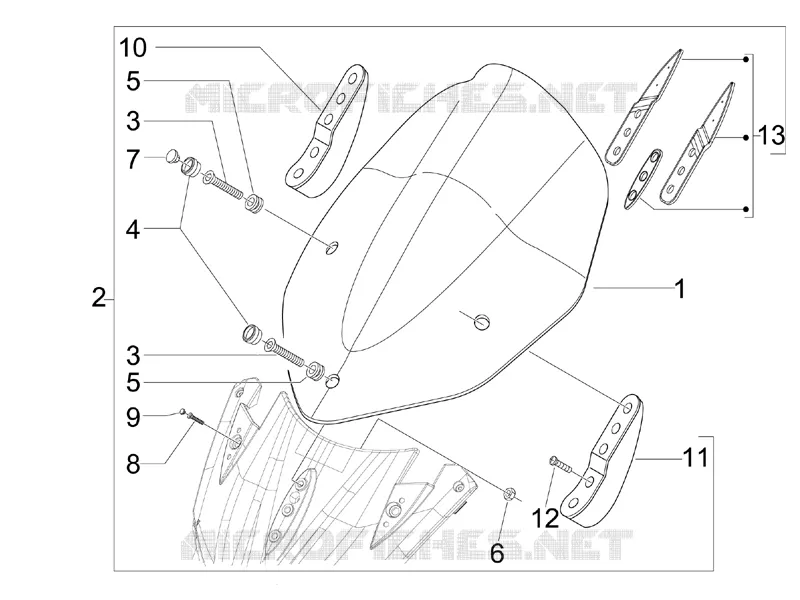

Windshield - Glass
1
2
3
3
4
5
5
6
7
8
9
10
11
12
13
1
Windscreen
656527
Not Available
2
Windshield connections kit
975760000G
Not Available
3
Screw
975856
Not Available
4
Windshield stud
621940
Not Available
5
Rubber spacer
560173
£3,59 Unit Price incl. VAT
6
Nut M6
020206
Not Available
7
Cover
577237
£1,09 Unit Price incl. VAT
8
Metric screw TBC
575249
£0,62 Unit Price incl. VAT
9
Clip
D9004468231
£0,16 Unit Price incl. VAT
10
Right arm
975508000G
Not Available
11
Left arm
975509000G
Not Available
12
Metric screw M6x20
259830
Not Available
13
Gaskets set
975750
£9,60 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
