1
Engine displacement
125
2
Model
NEXUS
3
Year
2009
4
Trim
Nexus ie E3
5
Parts Catalog
Flywheel magneto cover - Oil filter
6
Parts Diagram
Parts Catalog
Crankcase cover - Crankcase cooling
by
Front wheel

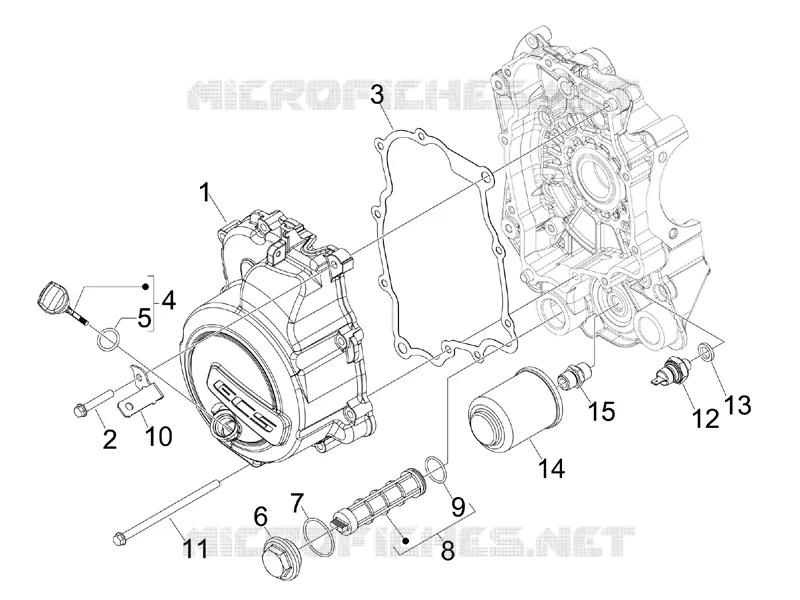

Flywheel magneto cover - Oil filter
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
Flywheel cover
875064
Not Available
2
screw M6x35
414838
£1,27 Unit Price incl. VAT
3
Flywheel housing cover gasket
840504
£10,57 Unit Price incl. VAT
4
Oil dipstick
875949
£7,90 Unit Price incl. VAT
5
O-ring
479986
Not Available
6
Oil filter plug
826165
£22,13 Unit Price incl. VAT
7
O-ring 31,47x1,78
285536
£1,64 Unit Price incl. VAT
8
Intake oil filter
843568
£5,87 Unit Price incl. VAT
9
O-ring 20,35x1,78
288474
£0,52 Unit Price incl. VAT
10
LAMBDA SENSOR PLATE
641346
Not Available
11
screw
844160
Not Available
12
Oil pressure sensor
641541
Not Available
13
Washer 10.5X16X2.5
486075
£1,32 Unit Price incl. VAT
14
Oil filter
82635R
Not Available
15
Oil filter special screw
840507
£10,91 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
