Engine displacement
150
2
Model
FLY
3
Year
2014
4
Trim
Fly 4T 3V ie
5
Parts Catalog
Front headlamps - Turn signal lamps
6
Parts Diagram
Parts Catalog
Front glove-box - Knee-guard panel
by
Locks
Front headlamps - Turn signal lamps
1
2
3
4
5
5
6
6
7
8
8
9
9
10
11
11
12
13
14
15
15
15
15
16
16
17
17
17
18
18
18
18
19
19
20
1
Headlamp
639100
£173,64 Unit Price incl. VAT
2
Lamp H4 12V-60/55W
292723
£18,91 Unit Price incl. VAT
3
Self tapping screw L=35 mm
296458
£0,52 Unit Price incl. VAT
4
RH front turn indicator
642531
£43,97 Unit Price incl. VAT
5
Lamp 12V-10W
584332
£3,77 Unit Price incl. VAT
6
Lamp 12V-5W
292022
Not Available
7
LH front turn indicator
642532
£43,97 Unit Price incl. VAT
8
Self tapping screw D4.2x16
CM178601
£1,24 Unit Price incl. VAT
9
Spring plate
CM017410
£0,71 Unit Price incl. VAT
10
Right rear or left front turn indicators
642023
£34,00 Unit Price incl. VAT
11
Lamp 12V-10W
584332
£3,77 Unit Price incl. VAT
12
Left rear or right front turn indicators
642024
£34,00 Unit Price incl. VAT
13
LH clamp
5A000052
£4,78 Unit Price incl. VAT
14
RH clamp
5A000047
Not Available
15
Metric screw TBC
CM179302
£1,27 Unit Price incl. VAT
16
Flat washer 6,4x12x1
003056
Not Available
17
Spring washer 6,4x11,8x1
016406
Not Available
18
Nut M6
020106
Not Available
19
Flat washer 16x6,5x1,5
013880
Not Available
20
Spring clamp
577594
£4,72 Unit Price incl. VAT

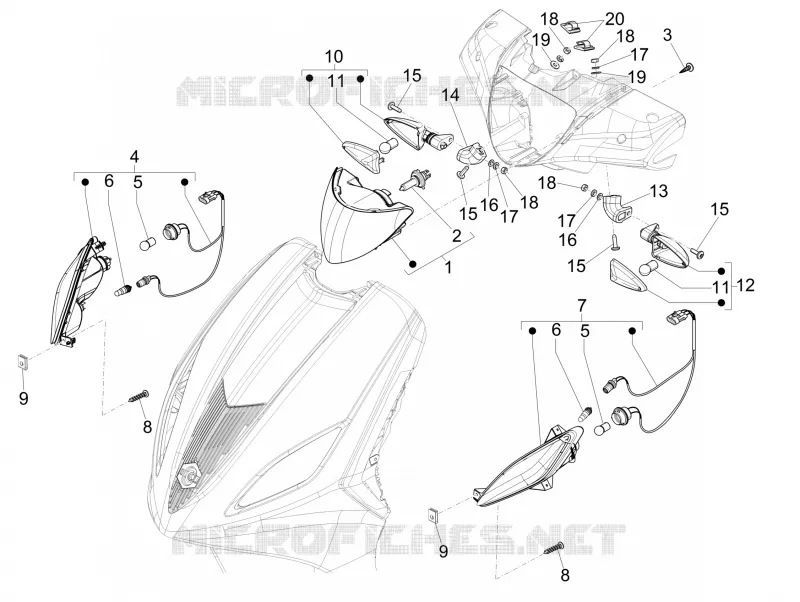

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
