1
Engine displacement
150
2
Model
FLY
3
Year
2014
4
Trim
Fly 4T 3V ie
5
Parts Catalog

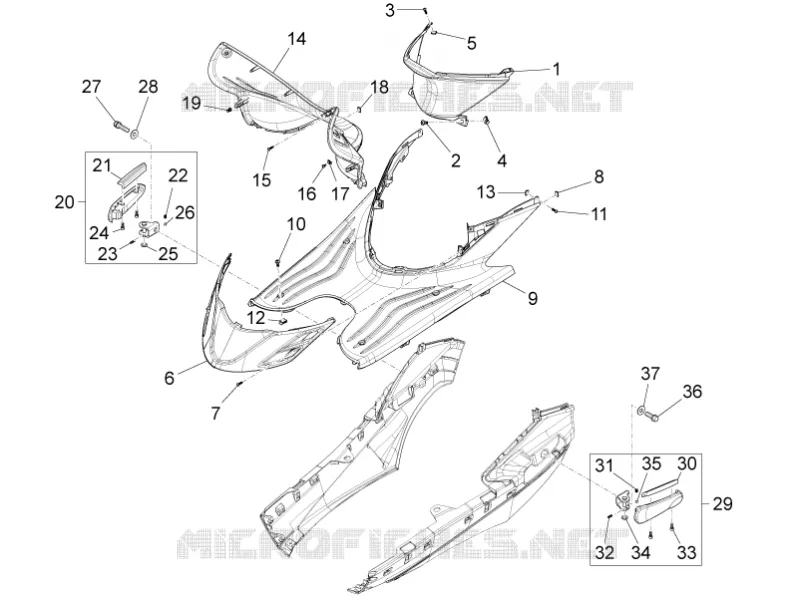

Central cover - Footrests
6
Parts Diagram
Parts Catalog
Stater - Electric starter
by
Rear brake - Brake jaw
Central cover - Footrests
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
1
Undersaddle, black
673679000C
£48,42 Unit Price incl. VAT
2
screw
CM179202
£1,27 Unit Price incl. VAT
3
Self tapping screw D4.2x16
CM178601
£1,24 Unit Price incl. VAT
4
Spring plate M6
254485
£1,64 Unit Price incl. VAT
5
Spring plate
CM017410
£0,71 Unit Price incl. VAT
6
Spark plug inspection cover
673680000C
£39,67 Unit Price incl. VAT
7
Self tapping screw D4.2x16
CM178601
£1,24 Unit Price incl. VAT
8
Spring plate
CM017410
£0,71 Unit Price incl. VAT
9
Footrest
673089000C
£59,82 Unit Price incl. VAT
10
Metric screw M6x22
CM179201
£0,62 Unit Price incl. VAT
11
Self tapping screw D4.2x13
CM178603
£1,87 Unit Price incl. VAT
12
Spring plate M6
254485
£1,64 Unit Price incl. VAT
13
Spring plate
CM017410
£0,71 Unit Price incl. VAT
14
Counter shield
673088000C
£34,13 Unit Price incl. VAT
15
Self tapping screw D4.2x16
CM178601
£1,24 Unit Price incl. VAT
16
Screw M6x16
CM179301
£1,27 Unit Price incl. VAT
17
Spring plate M6
254485
£1,64 Unit Price incl. VAT
18
Spring plate
CM017410
£0,71 Unit Price incl. VAT
19
Gripper clip
D9004468091
£4,58 Unit Price incl. VAT
20
Complete right passenger footrest
673069400C
£37,30 Unit Price incl. VAT
21
Rubber for right footrest
656033
£26,88 Unit Price incl. VAT
22
Premisphere spring
295590
Not Available
23
Elastic spring
259933
£0,62 Unit Price incl. VAT
24
screw
975805
Not Available
25
Flat washer 15x8,4x1,5
003058
Not Available
26
Ball D6
295591
Not Available
27
screw
781166
£1,24 Unit Price incl. VAT
28
Washer
012535
Not Available
29
Complete left passenger footrest
673068400C
£37,30 Unit Price incl. VAT
30
Rubber for left footrest
656031
Not Available
31
Premisphere spring
295590
Not Available
32
Elastic spring
259933
£0,62 Unit Price incl. VAT
33
screw
975805
Not Available
34
Flat washer 15x8,4x1,5
003058
Not Available
35
Ball D6
295591
Not Available
36
screw
781166
£1,24 Unit Price incl. VAT
37
Washer
012535
Not Available

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
