1
Engine displacement
125
2
Model
RUNNER
3
Year
2014
4
Trim
Runner ST 4T E3
5
Parts Catalog
Front shield
6
Parts Diagram
Parts Catalog
Meter combination - Cruscotto
by
Main cable harness
Front shield
1
2
3
4
5
6
7
8
9
10
10
11
11
12
13
13
13
13
14
14
15
15
16
16
17
17
19
20
1
Front shield
65506400R7
Not Available
1
Front shield
65498500H4
Not Available
1
Front shield
65506400EV
£195,35 Unit Price incl. VAT
1
Front shield
65498500AO
Not Available
1
Front shield
6550640090
Not Available
1
Front shield
65506400NI
£209,92 Unit Price incl. VAT
1
Front shield
65506400BR
Not Available
1
Front shield
654985
£244,12 Unit Price incl. VAT
1
Front shield
655064
Not Available
1
Front shield
65498500NI
Not Available
2
Shield central cover
655107
Not Available
2
Shield central cover
65510700NI
Not Available
2
Central cover
65510700R7
Not Available
2
Shield central cover
6551070090
Not Available
2
Central cover
65510700EV
£175,94 Unit Price incl. VAT
2
Central cover
65510700BR
£175,94 Unit Price incl. VAT
3
Right shield upper lateral cover
65498300R7
Not Available
3
Right shield upper lateral cover
65498300BR
Not Available
3
Right shield upper lateral cover
65498300NI
Not Available
3
Right shield upper lateral cover
6549830090
Not Available
3
Right shield upper lateral cover
65498300EV
£103,62 Unit Price incl. VAT
3
Right shield upper lateral cover
654983
£83,51 Unit Price incl. VAT
4
RH cover
949402000G
£33,28 Unit Price incl. VAT
4
Right shield lateral cover
6550430090
Not Available
4
RH cover
65504300EV
£107,05 Unit Price incl. VAT
4
RH cover
65504300R7
£107,05 Unit Price incl. VAT
4
RH cover
65504300BR
Not Available
4
Right shield lateral cover
65504300NI
£107,05 Unit Price incl. VAT
4
Right shield lateral cover
655043
£88,22 Unit Price incl. VAT
5
Left shield upper lateral cover
65498200R7
£103,62 Unit Price incl. VAT
5
Left shield upper lateral cover
65498200BR
Not Available
5
Left shield upper lateral cover
65498200EV
£103,62 Unit Price incl. VAT
5
Left shield upper lateral cover
65498200NI
£103,62 Unit Price incl. VAT
5
Left shield upper lateral cover
654982
£83,51 Unit Price incl. VAT
5
Left shield upper lateral cover
6549820090
Not Available
6
Left shield lateral cover
65504400NI
Not Available
6
LH cover
65504400EV
£107,05 Unit Price incl. VAT
6
LH cover
949403000G
£33,28 Unit Price incl. VAT
6
Left shield lateral cover
6550440090
Not Available
6
LH cover
65504400R7
Not Available
6
Left shield lateral cover
655044
£88,22 Unit Price incl. VAT
6
LH cover
65504400BR
Not Available
7
Screw M4,2x13
259349
£0,79 Unit Price incl. VAT
8
Spring plate
CM017410
£0,71 Unit Price incl. VAT
9
Metric screw TBC
575249
£0,62 Unit Price incl. VAT
10
Spring plate
CM017410
£0,71 Unit Price incl. VAT
11
Self-tap screw
576189
Not Available
12
Spring plate M6
254485
£1,64 Unit Price incl. VAT
13
TBCIC Screw
270793
£0,52 Unit Price incl. VAT
14
Cap
655094
£3,47 Unit Price incl. VAT
15
Self tapping screw
297498
£0,60 Unit Price incl. VAT
16
Flat washer 6,4x12x1
003056
Not Available
16
Flat washer 4,2x12x1
013763
Not Available
17
Plate
085508
Not Available
19
Left shield internal cover
655214000G
Not Available
19
Left shield internal cover
655214000C
Not Available
20
Right shield internal cover
655215000C
£26,84 Unit Price incl. VAT
20
Right shield internal cover
655215000G
Not Available

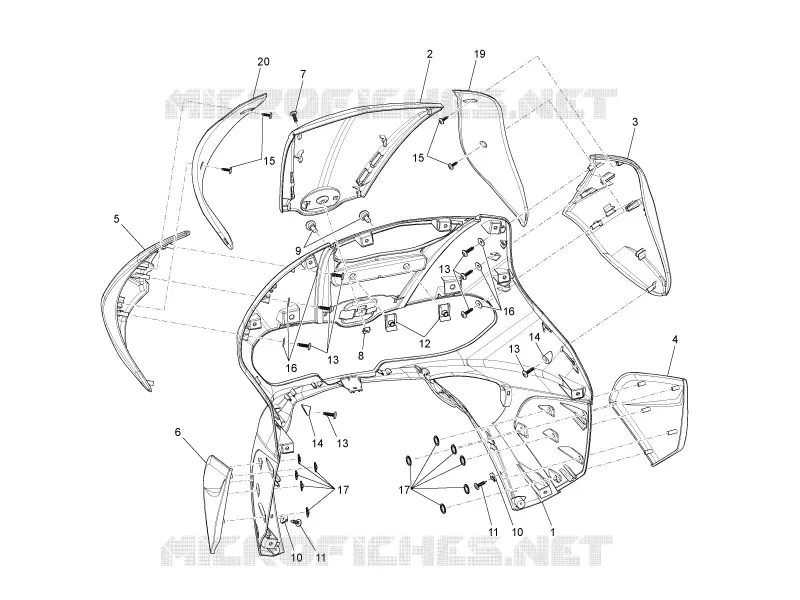

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
