Parts Catalog
Cooling system
6
Parts Diagram
Parts Catalog
Frame/bodywork
by
Driving mirror/s
Cooling system
1
2
3
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
18
19
20
21
21
22
23
24
25
26
26
27
27
28
29
29
30
31
32
33
34
35
36
37
38
39
40
41
1
Water cooler
57312R
£278,30 Unit Price incl. VAT
2
Cooler-tank return pipe
CM007013
£26,44 Unit Price incl. VAT
3
Spring plate M6
254485
£1,64 Unit Price incl. VAT
4
Screw M6x10
959614
£7,09 Unit Price incl. VAT
5
Electric fan
58170R
Not Available
6
Screw M6x16
272836
£1,13 Unit Price incl. VAT
7
Spring plate M6
254485
£1,64 Unit Price incl. VAT
8
Radiator support bracket
949385
£17,77 Unit Price incl. VAT
9
Screw M6x16
272836
£1,13 Unit Price incl. VAT
10
Spring plate M6
254485
£1,64 Unit Price incl. VAT
11
Coolant tank
656538
£72,88 Unit Price incl. VAT
11
Coolant tank
949429
Not Available
12
Fuel tank gasket
620737
£2,17 Unit Price incl. VAT
13
Expansion tank plug
623673
£17,92 Unit Price incl. VAT
14
Upper rubber
351782
£2,02 Unit Price incl. VAT
15
screw 4,2x19
258249
£0,73 Unit Price incl. VAT
16
Spring plate
CM017410
£0,71 Unit Price incl. VAT
17
Screw M6x16
CM179301
£1,27 Unit Price incl. VAT
18
Hose clamp
CM001903
£1,87 Unit Price incl. VAT
19
Tee union
574883
£9,60 Unit Price incl. VAT
20
Radiator big end connection front pipe
949637
£14,08 Unit Price incl. VAT
21
Hose clamp
CM001902
Not Available
22
Hose clamp
CM002902
£0,62 Unit Price incl. VAT
23
Lock-strap L=277
257134
£0,48 Unit Price incl. VAT
24
Hose clamp
CM002902
£0,62 Unit Price incl. VAT
25
Lock-strap L=180mm
145298
£1,14 Unit Price incl. VAT
26
Hose clamp
CM001904
£1,51 Unit Price incl. VAT
26
Hose clamp
CM001921
£3,67 Unit Price incl. VAT
27
Hose clamp
CM001907
£1,67 Unit Price incl. VAT
28
Radiator big end connection front pipe
949627
£13,76 Unit Price incl. VAT
29
Hose clamp
CM001909
£1,88 Unit Price incl. VAT
30
Thermal switch joint
949625
Not Available
31
Radiator big end connection pipe
949626
£60,80 Unit Price incl. VAT
32
Copper gasket
168077
£4,86 Unit Price incl. VAT
33
Temperature gauge
584715
£39,49 Unit Price incl. VAT
34
Hose clamp
CM001908
£2,06 Unit Price incl. VAT
35
Radiator pump connection pipe
949554
£30,64 Unit Price incl. VAT
36
Cover
621365
£2,22 Unit Price incl. VAT
37
Copper gasket
168077
£4,86 Unit Price incl. VAT
38
Sheet edge spring
CM013203
£2,45 Unit Price incl. VAT
39
Non return spring
CM006902
£1,55 Unit Price incl. VAT
40
pipe
CM000705
Not Available
41
Cooler-tank return pipe
CM007013
£26,44 Unit Price incl. VAT

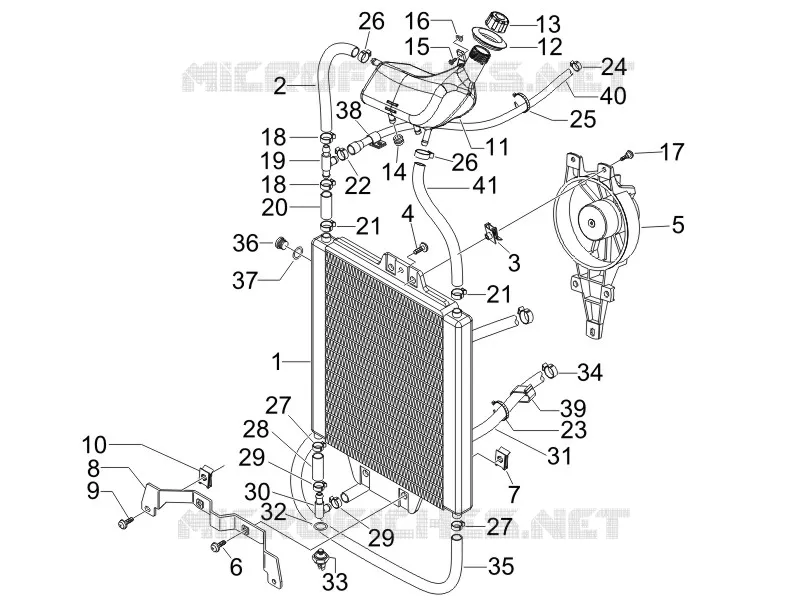

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
