1
Engine displacement
200
2
Model
RUNNER
3
Year
2005
4
Trim
Runner VXR 4T
5
Parts Catalog

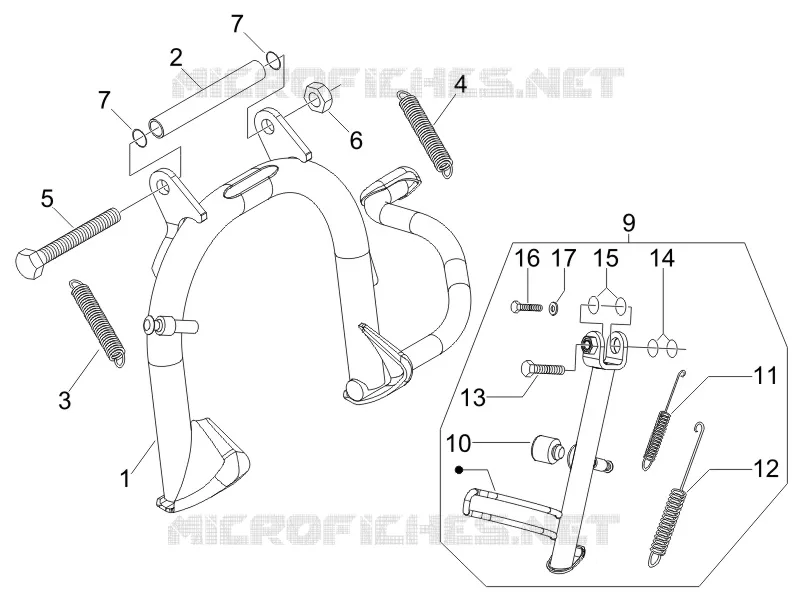

Stand/s
6
Parts Diagram
Parts Catalog
Frame/bodywork
by
Central cover - Footrests
Stand/s
17
16
15
14
13
12
11
10
9
7
7
6
5
4
3
2
1
1
Central stand
647246
Not Available
2
Spacer
582298
£15,12 Unit Price incl. VAT
3
Spring
581248
£7,49 Unit Price incl. VAT
4
Spring
581249
£6,37 Unit Price incl. VAT
5
Hex screw M10x130
030115
Not Available
6
Self locking nut M10
232108
Not Available
7
O-ring
273754
£0,73 Unit Price incl. VAT
8
Pad
581560
£3,23 Unit Price incl. VAT
9
SIDE STAND KIT
9496546
Not Available
10
Stop buffer
164245
£1,69 Unit Price incl. VAT
11
Spring
295788
£7,18 Unit Price incl. VAT
12
Spring
295789
£7,18 Unit Price incl. VAT
13
Stand pin
599097
£18,42 Unit Price incl. VAT
14
Gasket
191189
£0,73 Unit Price incl. VAT
15
O-ring 12,42x1
434947
£0,24 Unit Price incl. VAT
16
screw
319165
£1,27 Unit Price incl. VAT
17
Spring washer
709047
£0,70 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
