1
Engine displacement
200
2
Model
RUNNER
3
Year
2005
4
Trim
Runner VXR 4T
5
Parts Catalog
Driven pulley
6

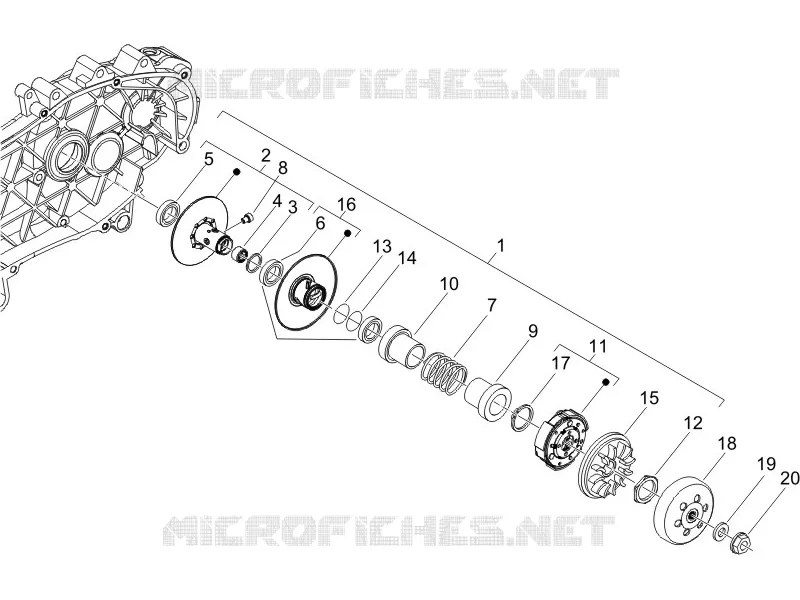

Parts Diagram
Parts Catalog
Cylinder-piston-wrist pin unit
by
Cooler pump
Driven pulley
11
9
20
19
18
17
16
15
14
13
12
10
8
7
6
5
4
3
2
1
1
Secondary pulley
82745R
Not Available
2
Sec. fixed sheave, complete
833669
Not Available
3
Snap ring
483226
£1,87 Unit Price incl. VAT
4
Roller cage 20x29x18
82518R
£29,20 Unit Price incl. VAT
5
Radial bearing 17x30
483261
Not Available
5
Bearing 17x30x7
82753R
£21,72 Unit Price incl. VAT
6
Gasket ring
431089
£8,58 Unit Price incl. VAT
7
Variator spring
833673
£11,71 Unit Price incl. VAT
8
Guide pin L=12,5
828717
£1,50 Unit Price incl. VAT
9
Clutch side cap
487936
£8,76 Unit Price incl. VAT
10
Cup
833674
£31,13 Unit Price incl. VAT
11
Centrifugal clutch assy
CM1440075
Not Available
11
CENTRIFUGAL CLUTCH GROUP
CM144007
Not Available
12
Ring nut
433232
£13,28 Unit Price incl. VAT
13
Gasket
430585
£0,88 Unit Price incl. VAT
14
O-ring
834044
£3,34 Unit Price incl. VAT
15
Fan
482305
£7,19 Unit Price incl. VAT
16
Sec. sliding sheave, complete
833672
Not Available
17
Gasket ring
006410
Not Available
18
Clutch drum
8440494
£74,72 Unit Price incl. VAT
18
Clutch drum
844049
Not Available
19
Flat washer 22x12,1x1
274246
£1,00 Unit Price incl. VAT
20
Nut M12x1.25
486324
£1,04 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
