Engine displacement
150
2
Model
FLY
3
Year
2013
4
Trim
Fly 4T E2-E3
5
Parts Catalog
Rear cover - Splash guard
6
Parts Diagram
Parts Catalog
Supply system
by
Stater - Electric starter
Rear cover - Splash guard
1
2
3
4
5
6
7
8
9
1
Rear splash guard
673093000C
Not Available
1
Rear splash guard
675638000C
£54,78 Unit Price incl. VAT
2
Metric screw M6x22
CM179201
£0,62 Unit Price incl. VAT
3
Spring plate M6
254485
£1,64 Unit Price incl. VAT
4
Pink lower side union
67368340P4
£34,86 Unit Price incl. VAT
4
Lower side union
67368340R7
Not Available
4
Lower side union
67368300ND
£21,16 Unit Price incl. VAT
4
Lower side union
673683
£22,09 Unit Price incl. VAT
4
White lower side union
67368340BT
Not Available
4
Lower side union
67368300BT
£21,01 Unit Price incl. VAT
4
Lower side union
67368300MB
Not Available
4
Lower side union
67368300DE
£21,16 Unit Price incl. VAT
4
Blue lower side union
67368340DE
Not Available
4
Red lower side union
67368340XR
£21,16 Unit Price incl. VAT
4
Lower side union
67368300XN
£21,01 Unit Price incl. VAT
4
Black lower side union
67368340XN
Not Available
5
Upper side union
67368440R7
£21,01 Unit Price incl. VAT
5
Upper side union
67368400XN
£21,01 Unit Price incl. VAT
5
Pink upper side union
67368440P4
£36,14 Unit Price incl. VAT
5
Upper side union
673684
£21,04 Unit Price incl. VAT
5
Upper side union
67368400MB
Not Available
5
Blue upper side union
67368440DE
Not Available
5
Red upper side union
67368440XR
£26,44 Unit Price incl. VAT
5
White upper side union
67368440BT
Not Available
5
Upper side union
67368400DE
£21,01 Unit Price incl. VAT
5
Upper side union
67368400ND
£21,01 Unit Price incl. VAT
5
Black upper side union
67368440XN
Not Available
5
Upper side union
67368400BT
Not Available
6
Gripper clip
D9004468091
£4,58 Unit Price incl. VAT
7
Self tapping screw D4.2x16
CM178601
£1,24 Unit Price incl. VAT
8
Spring plate
CM017410
£0,71 Unit Price incl. VAT
9
Rear retroreflector
582058
Not Available

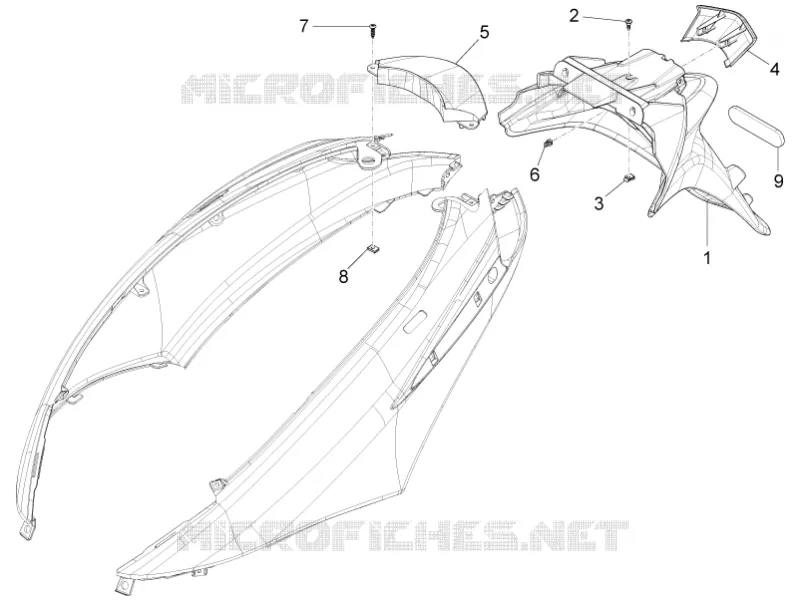

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
