Parts Catalog
Remote control switches - Battery - Horn
6
Parts Diagram
Parts Catalog
Central cover - Footrests
by
Fuel tank
Remote control switches - Battery - Horn
1
2
3
4
5
6
7
8
9
10
11
12
13
13
14
15
16
17
18
1
Horn 12v cc
58242R
Not Available
1
Horn 12v cc
642625
£34,42 Unit Price incl. VAT
2
Screw w/ flange M6x16
434541
Not Available
3
Electromagnetic switch support bracket
642932
£2,35 Unit Price incl. VAT
4
Starter relay 12V-80A
58115R
£23,16 Unit Price incl. VAT
5
Self tapping screw D4x16
CM180701
£0,52 Unit Price incl. VAT
6
Battery 12V-10A
640178
Not Available
6
Battery (Yuasa) 12V-6Ah
584662
£143,44 Unit Price incl. VAT
7
Stop buffer
673704
£5,10 Unit Price incl. VAT
8
Stop buffer
673702
£5,10 Unit Price incl. VAT
9
Turn indicator control
638755
Not Available
10
Device bracket
642317
£2,28 Unit Price incl. VAT
11
Relay support bracket
642777
£7,49 Unit Price incl. VAT
12
Self tapping screw D4.2x16
CM178601
£1,24 Unit Price incl. VAT
13
Rem. control switch 12V-30A
642065
£12,97 Unit Price incl. VAT
14
Battery cover
673569
£10,22 Unit Price incl. VAT
15
Metric screw M6x22
CM179201
£0,62 Unit Price incl. VAT
16
Spring plate M6
254485
£1,64 Unit Price incl. VAT
17
Self tapping screw D4x16
CM180701
£0,52 Unit Price incl. VAT
18
Expansion plug
157716
£0,16 Unit Price incl. VAT

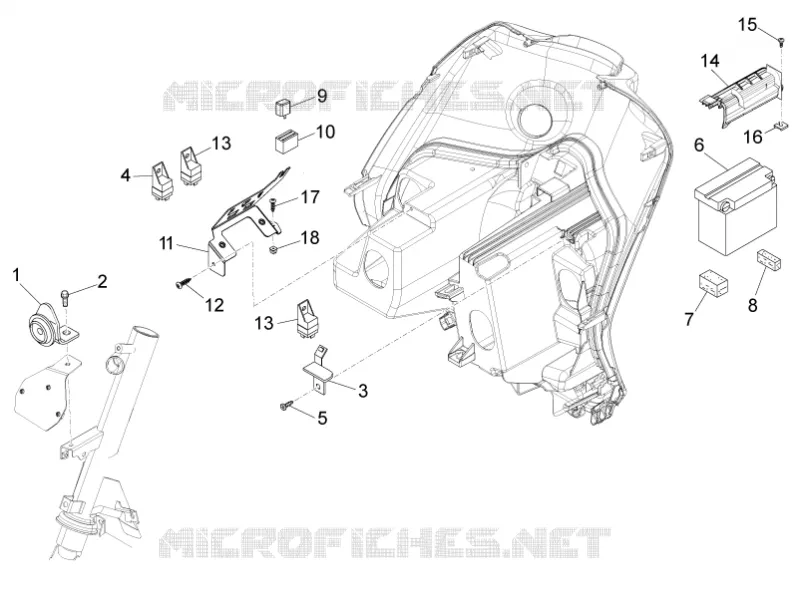

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
