Parts Catalog
Rear cover - Splash guard
6

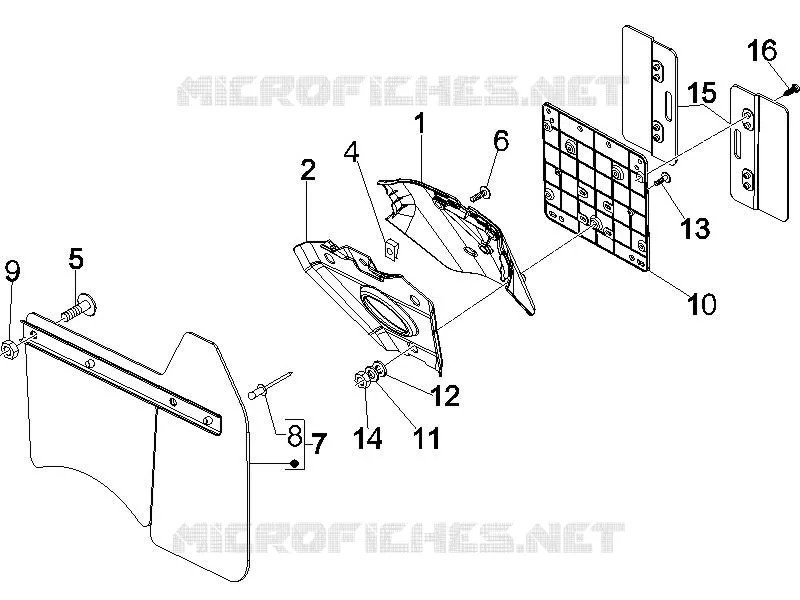

Parts Diagram
Parts Catalog
Rear luggage rack
by
Rear cover - Splash guard
1
2
4
5
6
7
8
9
10
11
12
13
14
15
16
1
Rear protection
62282400EP
Not Available
1
Rear protection
62282400RI
£138,41 Unit Price incl. VAT
1
Rear protection
62282400F2
Not Available
1
Rear protection
62282400M5
£138,41 Unit Price incl. VAT
1
Rear protection
62282400EU
£138,41 Unit Price incl. VAT
1
Rear protection
62282400R7
Not Available
1
Rear protection
62282400GP
£138,41 Unit Price incl. VAT
1
Rear protection
6228240090
Not Available
1
Rear protection
62282400XN2
£138,41 Unit Price incl. VAT
1
Rear protection
62282400ND
Not Available
1
Rear protection
62282400GV
£138,41 Unit Price incl. VAT
1
Rear protection
622824
£76,76 Unit Price incl. VAT
1
Rear protection
62282400DE
£138,41 Unit Price incl. VAT
2
Rear protection support
623563
Not Available
4
Spring plate M6
254485
£1,64 Unit Price incl. VAT
5
Screw M6x16
272836
£1,13 Unit Price incl. VAT
6
Metric screw TBC
575249
£0,62 Unit Price incl. VAT
7
Splash guard
620236
£33,00 Unit Price incl. VAT
8
Rivet
567642
£0,32 Unit Price incl. VAT
9
Self locking nut M6
288245
£0,76 Unit Price incl. VAT
10
Number plate holder
584884
£31,69 Unit Price incl. VAT
11
Flat washer 4,2x12x1
013763
Not Available
12
Flat washer 4,2x7,6x0,9
016404
Not Available
13
screw M4x14
018591
Not Available
14
Nut M4
020104
Not Available
15
Number-plate extension
584877
£5,88 Unit Price incl. VAT
16
Plug screw
268596
£0,62 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
