Engine displacement
250
2
Model
GTS
3
Year
2005
4
Trim
GTS
5
Parts Catalog
Cooling system
6
Parts Diagram
Parts Catalog
Rear wheel
by
Wheel huosing - Mudguard
Cooling system
1
1
2
2
3
4
5
6
7
8
9
10
11
12
13
14
16
17
18
19
20
21
22
23
24
25
27
28
29
30
30
31
31
32
33
34
35
36
37
37
37
38
39
40
1
Water cooler
577183
£280,33 Unit Price incl. VAT
2
Self locking nut M6
241936
£0,74 Unit Price incl. VAT
3
TBCIC Screw
270793
£0,52 Unit Price incl. VAT
4
Fan engine
584669
£182,66 Unit Price incl. VAT
5
Spring plate M6
254485
£1,64 Unit Price incl. VAT
6
Screw M6x16
272836
£1,13 Unit Price incl. VAT
6
Screw M6x16
CM179301
£1,27 Unit Price incl. VAT
7
Coolant tank
624402
Not Available
8
Expansion tank plug
623673
£17,92 Unit Price incl. VAT
9
Spring plate M6
254485
£1,64 Unit Price incl. VAT
10
screw
257404
£1,16 Unit Price incl. VAT
11
Lower joint-left radiator connection pipe
57313R
£20,33 Unit Price incl. VAT
12
pipe
577436
Not Available
13
Upper connection joint pipe
57333R
£56,30 Unit Price incl. VAT
14
Hose clamp
622229
Not Available
14
Hose clamp
CM001908
£2,06 Unit Price incl. VAT
16
Left air duct
577187
£14,29 Unit Price incl. VAT
17
Right air duct
622839
£14,92 Unit Price incl. VAT
18
Lower joint-right radiator connection pipe
577201
£20,53 Unit Price incl. VAT
19
pipe
577384
£18,24 Unit Price incl. VAT
20
Lower joint pipe
656437
£47,92 Unit Price incl. VAT
21
pipe
577433
£13,98 Unit Price incl. VAT
22
Head coupling tube
622052
Not Available
22
Head coupling tube
653501
£52,40 Unit Price incl. VAT
23
pipe
623013
£13,45 Unit Price incl. VAT
24
Joint for water pipes
656449
£16,22 Unit Price incl. VAT
25
Copper gasket
168077
£4,86 Unit Price incl. VAT
27
Cover
621365
£2,22 Unit Price incl. VAT
28
Guard
580160
Not Available
29
Joint
577195
£8,92 Unit Price incl. VAT
30
Spring plate M6
254485
£1,64 Unit Price incl. VAT
31
Metric screw M6x22
CM179201
£0,62 Unit Price incl. VAT
31
Metric screw TBC
575249
£0,62 Unit Price incl. VAT
32
Hose clamp
CM001903
£1,87 Unit Price incl. VAT
33
Hose clamp
CM001904
£1,51 Unit Price incl. VAT
34
Hose clamp
CM001905
£1,62 Unit Price incl. VAT
35
Hose clamp
CM001907
£1,67 Unit Price incl. VAT
36
Hose clamp
CM001908
£2,06 Unit Price incl. VAT
37
Hose clamp
CM001915
£1,99 Unit Price incl. VAT
38
Pipes/cables retainer spring
CM006903
£3,58 Unit Price incl. VAT
39
Lock-strap L=180mm
145298
£1,14 Unit Price incl. VAT
40
Spring washer
709047
£0,70 Unit Price incl. VAT

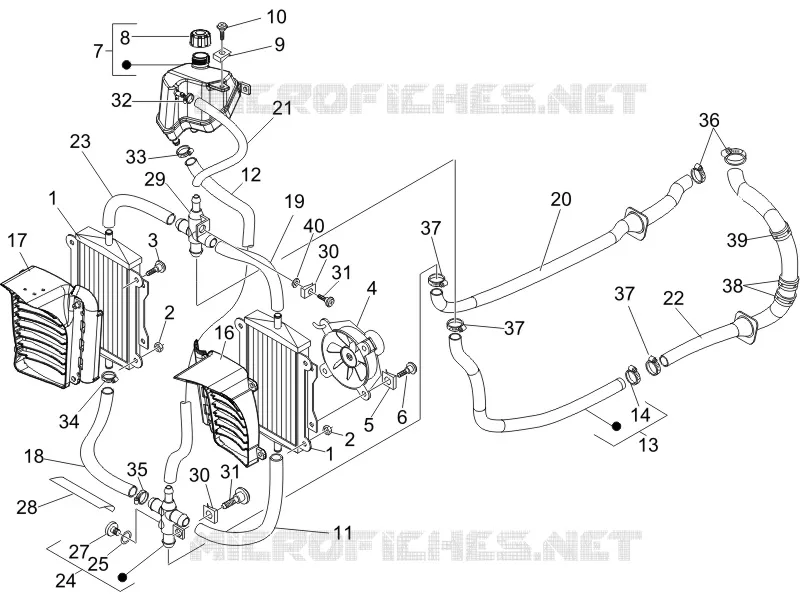

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
