Engine displacement
50
2
Model
FLY
3
Year
2016
4
Trim
Fly 4T 4V
5
Parts Catalog
Front glove-box - Knee-guard panel
6
Parts Diagram
Parts Catalog
Swinging arm
by
Saddle/seats
Front glove-box - Knee-guard panel
1
2
3
3
4
4
4
5
6
6
7
8
9
10
11
12
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
1
Counter shield
5A0000400000C
£105,10 Unit Price incl. VAT
2
Top case door
5A0000420000C
£31,32 Unit Price incl. VAT
3
Top box weatherseal
CM016804
£10,38 Unit Price incl. VAT
4
Self tapping screw
297498
£0,60 Unit Price incl. VAT
5
Square
252420
£3,88 Unit Price incl. VAT
6
Door fixing bracket
257614
£1,72 Unit Price incl. VAT
7
Spring
257617
£1,18 Unit Price incl. VAT
8
Door closing hook
673692
£13,57 Unit Price incl. VAT
9
Locking plate
573057
£5,76 Unit Price incl. VAT
10
Rim
673696000C
£12,32 Unit Price incl. VAT
11
Self tapping screw D4x16
CM180701
£0,52 Unit Price incl. VAT
12
Self tapping screw
297498
£0,60 Unit Price incl. VAT
13
Spring plate
674527
£13,45 Unit Price incl. VAT
14
Spring LH
5A000009
£1,28 Unit Price incl. VAT
15
Spring RH
5A000008
£1,28 Unit Price incl. VAT
16
Fuel flap handle
673695
£13,18 Unit Price incl. VAT
17
Counter flap
673085
£33,08 Unit Price incl. VAT
18
Self tapping screw D4.2x13
CM178603
£1,87 Unit Price incl. VAT
19
Spring plate
CM017410
£0,71 Unit Price incl. VAT
20
Fuel door
5A0000430000C
£21,37 Unit Price incl. VAT
21
Square
5A000007
£9,97 Unit Price incl. VAT
22
screw
CM179202
£1,27 Unit Price incl. VAT
23
Spring plate M6
254485
£1,64 Unit Price incl. VAT
24
Gripper clip
D9004468091
£4,58 Unit Price incl. VAT
25
Battery access door
673690000C
£27,72 Unit Price incl. VAT
26
Self tapping screw D4.2x16
CM178601
£1,24 Unit Price incl. VAT
27
Expansion plug
199190
£0,17 Unit Price incl. VAT
28
Cover
673827
Not Available
29
Glove compartment door handle
673694
£10,51 Unit Price incl. VAT

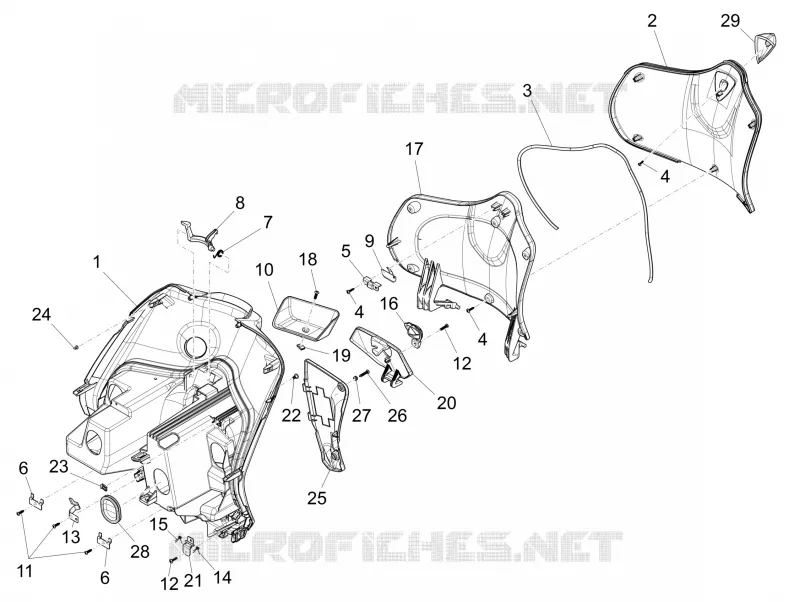

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
