Engine displacement
50
2
Model
FLY
3
Year
2016
4
Trim
Fly 4T 4V
5
Parts Catalog
Carburetor's components
6
Parts Diagram
Parts Catalog
Selectors - Switches - Buttons
by
Driving pulley
Carburetor's components
1
2
3
4
5
6
7
8
9
10
11
12
13
13
14
15
16
17
18
19
20
21
1
Gas valve cover
876821
£71,92 Unit Price incl. VAT
2
Gas valve spring
876819
£49,94 Unit Price incl. VAT
3
Cup
876820
£12,96 Unit Price incl. VAT
4
Conical pin
CM140212
£22,24 Unit Price incl. VAT
5
Diaphragm
CM160802
£124,21 Unit Price incl. VAT
6
Cap
828844
£16,30 Unit Price incl. VAT
7
Starter
CM142914
£263,88 Unit Price incl. VAT
8
Starter device
876826
£65,36 Unit Price incl. VAT
9
Adj.min.eng.speed screw cpl.
CM160102
£56,10 Unit Price incl. VAT
10
Fuel closing needle
CM147102
£16,48 Unit Price incl. VAT
11
Spring
841622
£6,40 Unit Price incl. VAT
12
Float
876822
£76,08 Unit Price incl. VAT
13
Special screw
841623
£0,54 Unit Price incl. VAT
14
Diffuser
828825
£16,06 Unit Price incl. VAT
15
Pipe
CM160201
£22,24 Unit Price incl. VAT
16
Main jet 72
CM142101
£11,87 Unit Price incl. VAT
17
Idle jet
CM142302
£15,41 Unit Price incl. VAT
18
Acceleration pump kit
876823
£69,25 Unit Price incl. VAT
19
Float chamber kit
876824
£27,90 Unit Price incl. VAT
20
Float chamber
CM160301
£80,18 Unit Price incl. VAT
21
Strap
B018773
£6,58 Unit Price incl. VAT

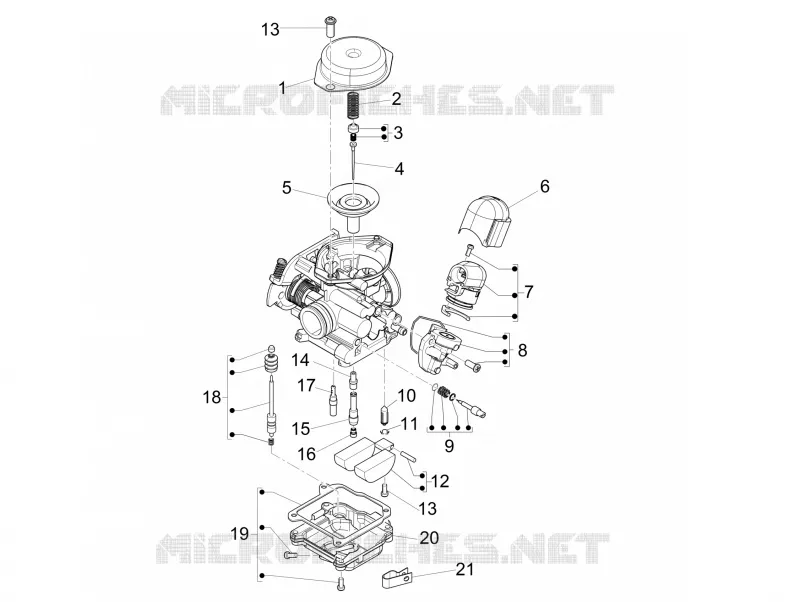

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
