Flywheel magneto cover - Oil filter for GTS ie ABS Super from 2014

Free shipping for all orders to United Kingdom over £150! See conditions.

Flywheel magneto cover - Oil filter

1

Flywheel cover cpl.

8798315

£211,82 Unit Price incl. VAT

2

Water pump impeller cpl.

844730

£12,84 Unit Price incl. VAT

3

Gasket ring

82991R

£27,28 Unit Price incl. VAT

4

Water pump shaft assy.

8447595

£57,52 Unit Price incl. VAT

5

Gasket ring 20x30x5

82897R

£12,89 Unit Price incl. VAT

6

Pump impeller drive key

842389

£31,21 Unit Price incl. VAT

7

Timing plug assembly

8290405

£16,91 Unit Price incl. VAT

8

O-ring

479986

Not Available

9

Lambda probe plate

847716

£1,85 Unit Price incl. VAT

10

screw M6x112,5

B016807

£1,90 Unit Price incl. VAT

11

Cable retainer plate

847717

£1,39 Unit Price incl. VAT

12

Screw w/ flange

484123

£0,54 Unit Price incl. VAT

13

Washer

012528

Not Available

14

screw M6x35

414838

£1,27 Unit Price incl. VAT

15

Flywheel housing cover gasket

840504

£10,57 Unit Price incl. VAT

16

Oil filter plug

826165

£22,13 Unit Price incl. VAT

17

O-ring 31,47x1,78

285536

£1,64 Unit Price incl. VAT

18

Intake oil filter

843568

£5,87 Unit Price incl. VAT

19

O-ring 20,35x1,78

288474

£0,52 Unit Price incl. VAT

20

Oil filter

82635R

Not Available

21

Oil filter special screw

840507

£10,91 Unit Price incl. VAT

22

Oil pressure sensor

641541

Not Available

23

Washer 10.5X16X2.5

486075

£1,32 Unit Price incl. VAT

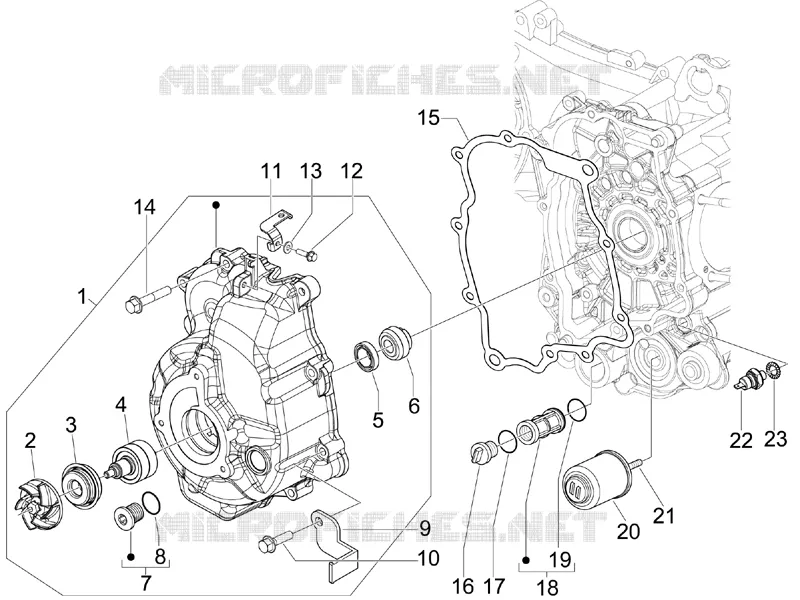

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
