1
Engine displacement
300
2
Model
GTS
3
Year
2014
4
Trim
GTS ie ABS Super
5
Parts Catalog

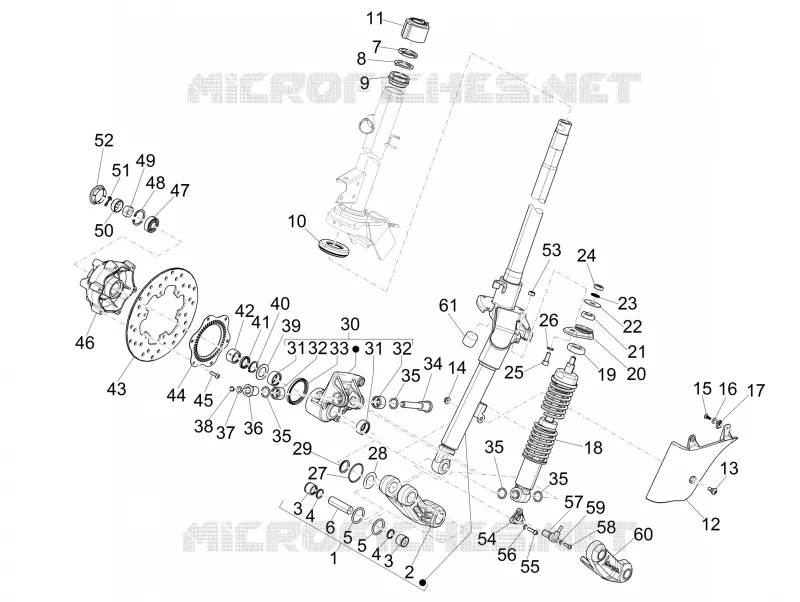

Fork/steering tube - Steering bearing unit
6
Parts Diagram
Parts Catalog
Head unit - Valve
by
Rear wheel
Fork/steering tube - Steering bearing unit
1
2
3
3
4
4
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
31
32
32
33
34
35
35
35
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
1
Steering tube complete with arm
1C0006215
£562,66 Unit Price incl. VAT
2
Left suspension arm
6691315
£105,14 Unit Price incl. VAT
3
Roller cage
198513
£15,49 Unit Price incl. VAT
4
Gasket ring
119219
£1,58 Unit Price incl. VAT
5
Gasket
006731
Not Available
6
Piston pin
177451
£22,88 Unit Price incl. VAT
7
Lower steering bearing
650075
Not Available
8
Upper thrust ring
650693
Not Available
9
Steering security plate
582787
£1,91 Unit Price incl. VAT
10
Steering tube ring nut
0111094
Not Available
11
Collar
582828
£2,11 Unit Price incl. VAT
12
Front suspension cover
649876
Not Available
13
Metric screw TBC
259348
£1,04 Unit Price incl. VAT
14
Nut
969224
£0,16 Unit Price incl. VAT
15
Screw M4,2x13
259349
£0,79 Unit Price incl. VAT
16
Washer
012528
Not Available
17
Spring plate
CM017410
£0,71 Unit Price incl. VAT
18
Complete front shock absorber
1C000731
Not Available
19
Pad
174874
£3,66 Unit Price incl. VAT
20
Shock absorber connection bracket
601556
£31,18 Unit Price incl. VAT
21
Pad
174085
£2,87 Unit Price incl. VAT
22
Washer
174088
£1,62 Unit Price incl. VAT
23
Washer
012535
Not Available
24
Nut
021210
Not Available
25
Hex socket screw M8x20
295822
Not Available
26
Spring washer 13,75x8,15x4,5
016408
Not Available
27
O-ring
177408
£1,33 Unit Price incl. VAT
28
Washer
177445
£1,62 Unit Price incl. VAT
29
Ring
177521
£1,62 Unit Price incl. VAT
30
Pin and shock absorber support
1C0005065
£219,74 Unit Price incl. VAT
31
Drawn cap
177436
Not Available
32
Roller cage
1C000167
£14,81 Unit Price incl. VAT
33
Ring
177494
£4,73 Unit Price incl. VAT
34
Threaded pin
1C000500
£28,90 Unit Price incl. VAT
35
Gasket ring
482302
£0,97 Unit Price incl. VAT
36
Threaded bush
1C000499
£25,24 Unit Price incl. VAT
37
Washer
847183
£1,27 Unit Price incl. VAT
38
Safety washer
006408
Not Available
39
Washer
177414
£1,62 Unit Price incl. VAT
40
Circlip
006422
Not Available
41
Gasket ring
177443
£3,55 Unit Price incl. VAT
42
Roller cage
177442
£7,33 Unit Price incl. VAT
43
Brake disc
56484R
£78,92 Unit Price incl. VAT
44
Front ABS tone wheel
669115
£10,22 Unit Price incl. VAT
45
Hex socket screw M6x20
667152
£1,27 Unit Price incl. VAT
46
Rear wheel hub with U.P.
650907
£131,96 Unit Price incl. VAT
47
Bearing
177610
£20,51 Unit Price incl. VAT
48
Snap ring
006635
Not Available
49
Nut
021114
Not Available
50
Cap
177609
£3,76 Unit Price incl. VAT
51
Split pin
012789
Not Available
52
Cover
092517
Not Available
53
Nut M8x6,5
020108
Not Available
54
ABS support bracket sensor
1C000548
£10,94 Unit Price incl. VAT
55
Hex socket screw M6x20
709674
£1,27 Unit Price incl. VAT
56
Spring washer 12x6,4x0,5
006976
Not Available
57
ABS sensor
1D0001275
Not Available
58
Torx Screw
880285
£1,24 Unit Price incl. VAT
59
Washer Ø5,3xØ10x0,5
006975
Not Available
60
Swinging arm cover
1C000835
£22,55 Unit Price incl. VAT
61
Cover
601026
£7,00 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
