1
Engine displacement
125
2
Model
LT
3
Year
2013
4
Trim
LT 4T 3V ie E3
5
Parts Catalog

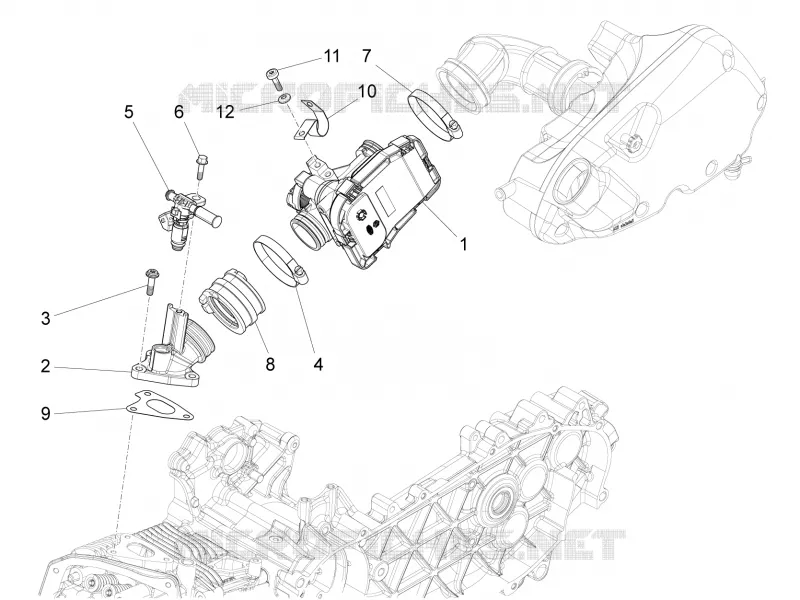

Throttle body - Injector - Union pipe
6
Parts Diagram
Parts Catalog
Handlebars - Master cil.
by
Saddle/seats
Throttle body - Injector - Union pipe
1
2
3
4
5
6
7
8
9
10
11
12
1
Throttle body with E.C.U.
CM088116
£561,71 Unit Price incl. VAT
1
Throttle body with E.C.U.
CM088121
Not Available
1
Throttle body with E.C.U.
CM088103
£512,68 Unit Price incl. VAT
2
Union pipe
1A003906
Not Available
2
Induction joint with I.P.
1A004694
Not Available
2
Induction joint with I.P.
B018995
Not Available
3
Antitampering screw M6x22
1A000352
£3,49 Unit Price incl. VAT
4
Hose clamp
B016006
Not Available
5
Injector complete with connection
8799715
£184,85 Unit Price incl. VAT
6
Screw w/ flange M5x20
872269
£1,87 Unit Price incl. VAT
7
Hose clamp
B016009
Not Available
8
Hose
1A003992
Not Available
8
Hose
1A000273
Not Available
9
Gasket
1A003750
£1,54 Unit Price incl. VAT
10
Metallic clamp
642044
£2,45 Unit Price incl. VAT
11
Screw M5x15
873653
£5,14 Unit Price incl. VAT
12
Washer
012528
Not Available

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
