Engine displacement
125
2
Model
LT
3
Year
2013
4
Trim
LT 4T 3V ie E3
5
Parts Catalog
Cylinder-piston-wrist pin unit
6
Parts Diagram
Parts Catalog
Side cover - Spoiler
by
Crankcase cover - Crankcase cooling
Cylinder-piston-wrist pin unit
1
2
3
4
5
6
7
8
1
Complete piston assembly
B0189540003
£127,19 Unit Price incl. VAT
1
Complete piston assembly
B0189540002
£127,19 Unit Price incl. VAT
1
Complete piston assembly
B0189540004
£127,19 Unit Price incl. VAT
1
Complete piston assembly
B0189540001
£127,19 Unit Price incl. VAT
2
Piston pin
B017148
Not Available
3
Circlip
B015602
£2,93 Unit Price incl. VAT
4
Compression ring 1° cava
B017544
£21,70 Unit Price incl. VAT
5
Compression ring 2° cava
B017545
£21,70 Unit Price incl. VAT
6
Oil scraper ring 3° cava
B017546
£35,20 Unit Price incl. VAT
7
Cyl.pist.-wrist pin assy unit
1A000771
£314,78 Unit Price incl. VAT
8
Crankcase/cylinder gasket 0,8 mm
B015443
Not Available
8
Crankcase/cylinder gasket 0,6 mm
B015442
Not Available
8
Crankcase/cylinder gasket 0,4 mm
B015441
Not Available

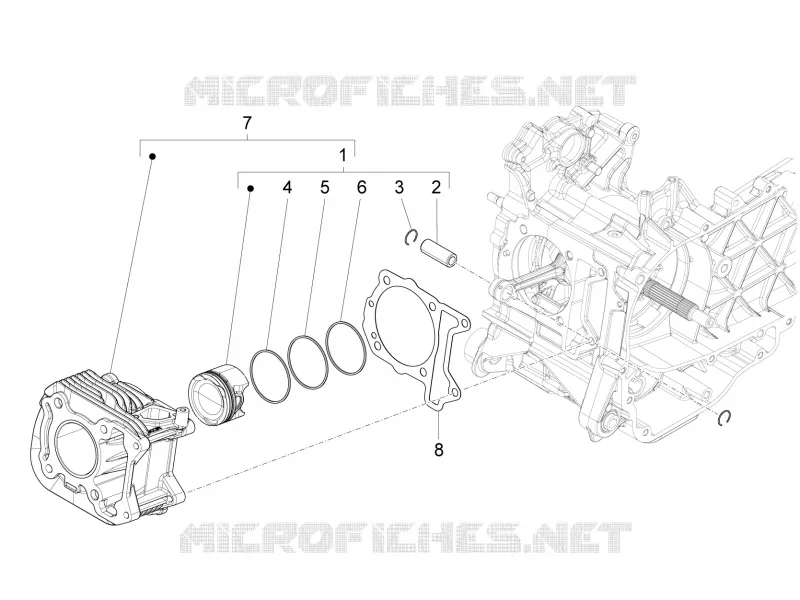

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
