1
Engine displacement
125
2
Model
LX
3
Year
2012
4
Trim
LX 4T 3V ie
5
Parts Catalog

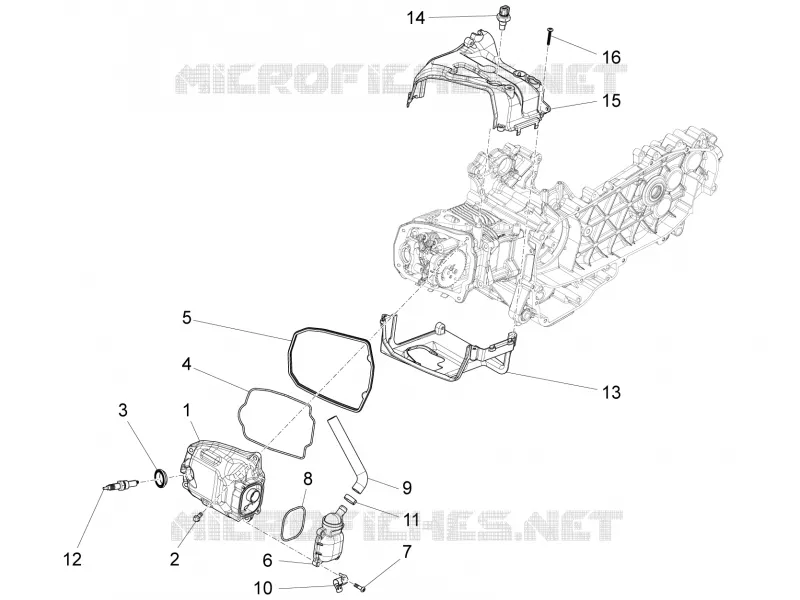

Cylinder head cover
6
Parts Diagram
Parts Catalog
Rear headlamps - Turn signal lamps
by
Fork/steering tube - Steering bearing unit
Cylinder head cover
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1
Head cover
B013837
£43,90 Unit Price incl. VAT
2
Hex screw M6x20
018639
Not Available
3
Spark plug hole gasket
B015566
£14,10 Unit Price incl. VAT
3
Spark plug hole gasket
B017488
£3,47 Unit Price incl. VAT
4
Gasket OR big end
879507
Not Available
5
Big end/hood gasket
879479
£13,99 Unit Price incl. VAT
6
Oil bleed cover
B015453
Not Available
7
Torx Screw M5x20
B016808
£1,27 Unit Price incl. VAT
8
Gasket
487989
Not Available
9
Blow-by pipe
880814
£13,00 Unit Price incl. VAT
10
Hose clamp
B017694
£4,75 Unit Price incl. VAT
11
Hose clamp
CM001904
£1,51 Unit Price incl. VAT
12
Spark plug (NGK) CR8EB
638853
£14,52 Unit Price incl. VAT
13
Exhaust side hood
879483
Not Available
14
Temp. Sensor
58273R
£59,02 Unit Price incl. VAT
15
Intake side hood
879489
Not Available
16
screw
259577
£0,97 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
