Engine displacement
125
2
Model
LX
3
Year
2012
4
Trim
LX 4T 3V ie
5
Parts Catalog
Fuel tank
6
Parts Diagram
Parts Catalog
Rear cover - Splash guard
by
Plates - Emblems
Fuel tank
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
1
Indicator fuel level
CM025713
£78,01 Unit Price incl. VAT
2
Plug
656022
£37,18 Unit Price incl. VAT
3
Tank cover gasket
656021
£21,35 Unit Price incl. VAT
4
Flat washer 16x6,5x1,5
013880
Not Available
5
Spring washer 6,4x11,8x1
016406
Not Available
6
Hex screw M6x20
018639
Not Available
7
Complete fuel pump assembly
641136
Not Available
8
Fuel pump filter
639357
£171,13 Unit Price incl. VAT
9
Tank breather pipe
CM011904
Not Available
10
Elastic spring
672491
£1,18 Unit Price incl. VAT
11
Pipes/cables retainer spring
CM006913
£3,20 Unit Price incl. VAT
12
Ring nut
576546
£7,22 Unit Price incl. VAT
13
Complete fuel pipe
674906
£69,97 Unit Price incl. VAT
14
Fuel tank
655379
Not Available
15
Spring plate M6
254485
£1,64 Unit Price incl. VAT
16
Spring
CM013201
£0,76 Unit Price incl. VAT
17
Lock-strap L=180mm
145298
£1,14 Unit Price incl. VAT
18
Safety valve
576748
£44,46 Unit Price incl. VAT
19
Gasket
656003
£24,56 Unit Price incl. VAT
20
Hose clamp
CM001914
£1,57 Unit Price incl. VAT
21
pipe L=125mm
CM177902
Not Available
22
Hose clamp
CM001914
£1,57 Unit Price incl. VAT

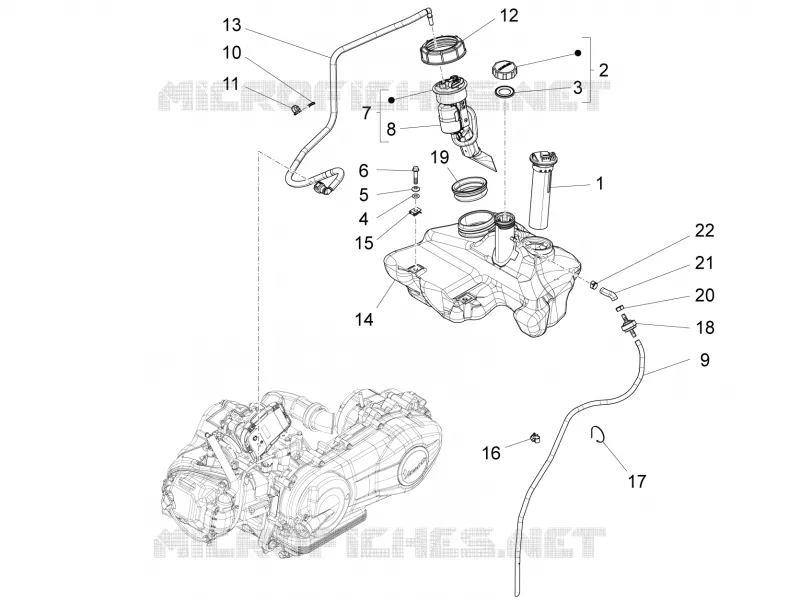

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
