Engine displacement
125
2
Model
LX
3
Year
2010
4
Trim
LX 4T ie E3
5
Parts Catalog
Throttle body - Injector - Union pipe
6
Parts Diagram
Parts Catalog
Flywheel magneto
by
Oil pump
Throttle body - Injector - Union pipe
1
2
3
4
5
6
7
8
1
Throttle body with electronic control unit
CM160011
Not Available
1
Throttle body with electronic control unit
CM160003
Not Available
1
THROTTLE BODY WITH E.C.U. 9I0 HW30
CM084906
Not Available
1
Throttle body with electronic control unit
CM160007
Not Available
2
Union pipe
876797
£37,19 Unit Price incl. VAT
3
screw M6x22
828152
Not Available
4
Hose clamp
709532
Not Available
5
Complete injector
8732885
£159,76 Unit Price incl. VAT
5
Complete injector
6418415
Not Available
6
Screw w/ flange M5x20
872269
£1,87 Unit Price incl. VAT
7
Hose clamp
614188
£4,90 Unit Price incl. VAT
8
Plate
878830
£15,49 Unit Price incl. VAT

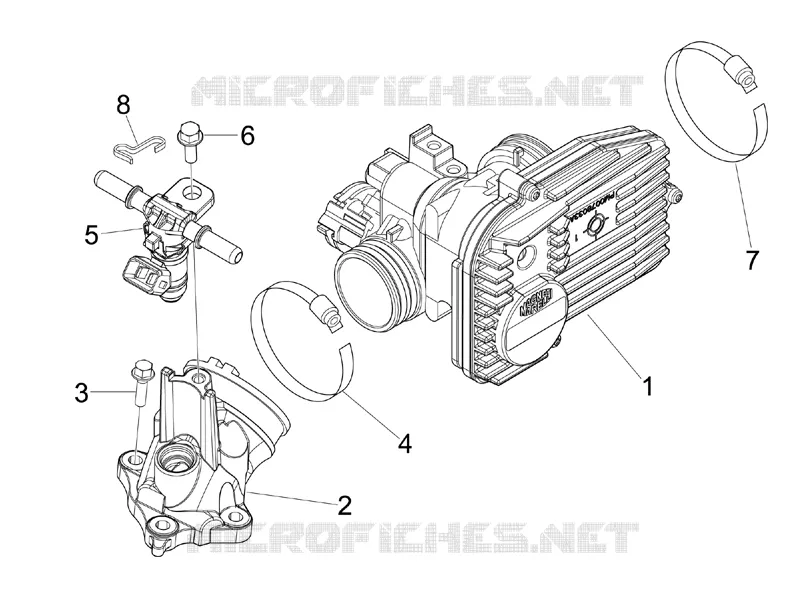

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
