Engine displacement
125
2
Model
LX
3
Year
2010
4
Trim
LX 4T ie E3
5
Parts Catalog
Rear cover - Splash guard
6
Parts Diagram
Parts Catalog
Stand/s
by
Brakes pipes - Calipers
Rear cover - Splash guard
2
3
4
5
6
7
8
9
14
15
16
17
18
19
20
22
23
24
25
26
30
31
32
33
34
2
Metric screw M6x20
259830
Not Available
2
Metric screw M6x22
CM179201
£0,62 Unit Price incl. VAT
3
Spring plate M6
254485
£1,64 Unit Price incl. VAT
4
Metric screw TBC
CM179302
£1,27 Unit Price incl. VAT
4
Metric screw TBC
575249
£0,62 Unit Price incl. VAT
5
Saddle rear cover
623336
£23,59 Unit Price incl. VAT
6
Plug screw
268596
£0,62 Unit Price incl. VAT
7
Splash guard
623420
£13,18 Unit Price incl. VAT
8
Self tapping screw
296141
£1,39 Unit Price incl. VAT
9
Flat washer 4,2x12x1
013763
Not Available
14
Battery cover
623020
Not Available
14
Complete battery tank cover
656303
£47,66 Unit Price incl. VAT
15
Spring plate
CM017410
£0,71 Unit Price incl. VAT
16
Bracket
290405
£1,45 Unit Price incl. VAT
17
Rivet
297519
Not Available
18
Plate
CM017408
£0,30 Unit Price incl. VAT
19
Spring plate
CM017410
£0,71 Unit Price incl. VAT
20
Spring plate M6
254485
£1,64 Unit Price incl. VAT
22
Screw m6x30
271891
£1,28 Unit Price incl. VAT
22
Self-tap screw
CM178604
£1,24 Unit Price incl. VAT
23
Flat washer 4,2x12x1
013763
Not Available
24
Flat washer 4,2x7,6x0,9
016404
Not Available
25
screw M4x14
018591
Not Available
26
Nut M4
020104
Not Available
30
Rear protection
65673100GP
Not Available
30
Rear protection
62212340P2
Not Available
30
Rear protection
65673100R7
Not Available
30
Rear protection
62212340R7
Not Available
30
Rear protection
65673100C5
Not Available
30
Rear protection
62212340DE
Not Available
30
Rear protection
656731
£56,10 Unit Price incl. VAT
30
Rear protection
65673100BR
Not Available
30
Rear protection
65673100EU
Not Available
30
Rear protection
62212340EU
£166,87 Unit Price incl. VAT
30
Rear protection
6221234
Not Available
30
Rear protection
65673100P3
£163,63 Unit Price incl. VAT
30
Rear protection
65673100AI
£163,63 Unit Price incl. VAT
30
Rear protection
62212340GP
£166,87 Unit Price incl. VAT
30
Rear protection
65673100DE
Not Available
30
Rear protection
62212340XN2
Not Available
30
Rear protection
65673100XN2
Not Available
30
Rear protection
62212340AI
Not Available
30
Rear protection
62212340C5
Not Available
30
Rear protection
62212340BR
Not Available
30
Rear protection
65673100P2
Not Available
31
Number plate holder
584884
£31,69 Unit Price incl. VAT
32
Plug screw
268596
£0,62 Unit Price incl. VAT
33
Number-plate extension
584877
£5,88 Unit Price incl. VAT
34
Self tapping screw 4,2x29
623568
Not Available
34
screw 4,2x19
258249
£0,73 Unit Price incl. VAT
34
Screw metrica
CM179303
£1,27 Unit Price incl. VAT
34
Self tapping screw
CM178608
£1,24 Unit Price incl. VAT
34
screw M6x25
CM179305
£1,24 Unit Price incl. VAT

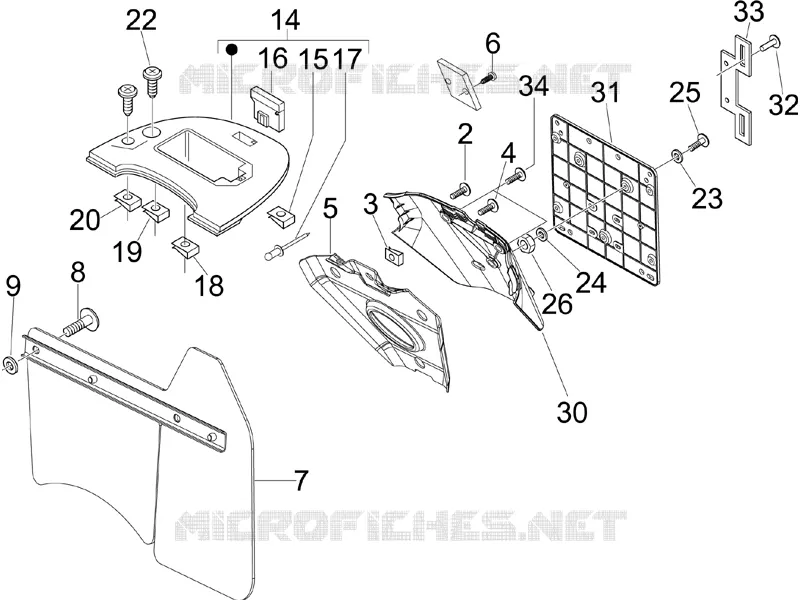

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
