1
Engine displacement
150
2
Model
PX
3
Year
2015
4
Trim
PX
5
Parts Catalog

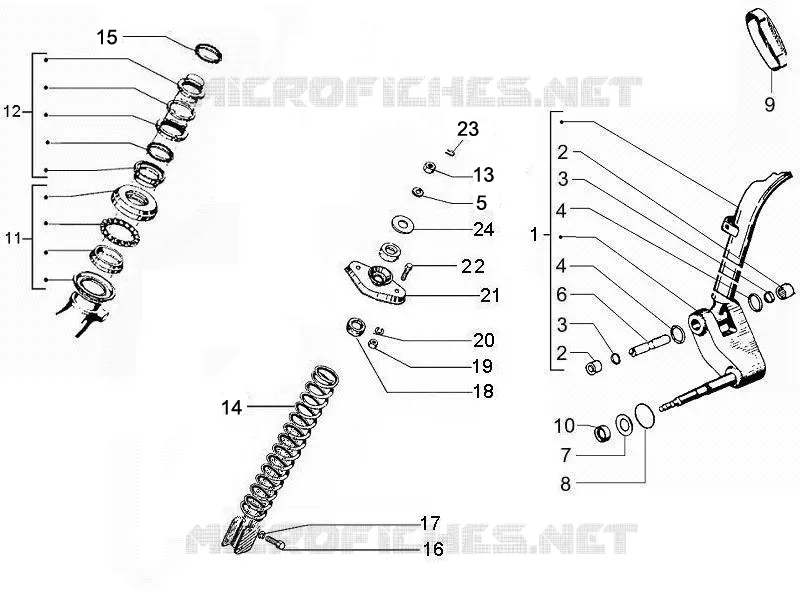

Fork's components (Mingxing)
6
Parts Diagram
Parts Catalog
Flywheel magneto
by
Side cover - Spoiler
Fork's components (Mingxing)
1
2
2
3
3
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
1
Steering column tube
5640715
£375,49 Unit Price incl. VAT
2
Roller cage
198513
£15,49 Unit Price incl. VAT
3
Gasket ring
119219
£1,58 Unit Price incl. VAT
4
Gasket
006731
Not Available
5
Spring washer
667058
£1,24 Unit Price incl. VAT
6
Piston pin
177451
£22,88 Unit Price incl. VAT
7
Washer
177445
£1,62 Unit Price incl. VAT
8
O-ring
177408
£1,33 Unit Price incl. VAT
9
Plug
564222
£29,47 Unit Price incl. VAT
10
Ring
177521
£1,62 Unit Price incl. VAT
11
Lower steering bearing
650075
Not Available
12
Upper thrust ring
650693
Not Available
13
Nut
021210
Not Available
14
Complete front shock absorber
58570R5
£100,90 Unit Price incl. VAT
15
Washer of the steering
0037514
Not Available
16
Hex socket screw M8x40
149104
£1,57 Unit Price incl. VAT
17
Spring washer
709047
£0,70 Unit Price incl. VAT
18
Pad
174085
£2,87 Unit Price incl. VAT
19
Nut M8x6,5
020108
Not Available
20
Spring washer 13,75x8,15x4,5
016408
Not Available
21
plate
174806
£17,52 Unit Price incl. VAT
22
Hex screw M8x22
031119
Not Available
23
Split pin
012789
Not Available
24
Washer
174088
£1,62 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
