1
Engine displacement
150
2
Model
PX
3
Year
2015
4
Trim
PX
5
Parts Catalog
Voltage Regulators - Electronic Control Units (ecu) - H.T. Coil
6
Parts Diagram
Parts Catalog
Rear transmission
by
Front headlamps - Turn signal lamps
Voltage Regulators - Electronic Control Units (ecu) - H.T. Coil
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
1
Flat washer 6,4x12x1
003056
Not Available
2
Spring washer 6,4x11,8x1
016406
Not Available
3
Nut M6
020106
Not Available
4
screw M6x16
031088
Not Available
5
Spring
232661
£5,76 Unit Price incl. VAT
6
screw M6x14
008375
Not Available
7
Bracket
179895
£3,74 Unit Price incl. VAT
8
Unit turn signal lamps
195703
Not Available
9
Guard
195740
£9,29 Unit Price incl. VAT
10
Device
233707
£103,60 Unit Price incl. VAT
11
Flexible support
291017
£13,44 Unit Price incl. VAT
12
Voltage regulator
58074R
£89,78 Unit Price incl. VAT
13
Plain washer 5,4x10x0,8
003055
Not Available
14
Washer
006018
Not Available
15
TBIC screw
015597
Not Available
16
Spring washer 8,5x5,1x1,5
016405
Not Available
17
Nut
020005
Not Available
18
Bush
141589
£1,08 Unit Price incl. VAT
19
Pad
141590
£2,24 Unit Price incl. VAT
20
Spring washer 6,4x11,8x1
016406
Not Available
21
Nut M6
020106
Not Available
22
Bracket
179504
£12,25 Unit Price incl. VAT
23
Electronic ignition device
244128
£83,35 Unit Price incl. VAT
23
Electronic ignition device
642443
£88,42 Unit Price incl. VAT
24
Terminal
127966
£2,20 Unit Price incl. VAT
25
screw
015835
Not Available
25
Hex screw
643042
£2,62 Unit Price incl. VAT
26
Electronic control unit hood
179503
£6,74 Unit Price incl. VAT
27
Engine cable harness
642460
£19,76 Unit Price incl. VAT

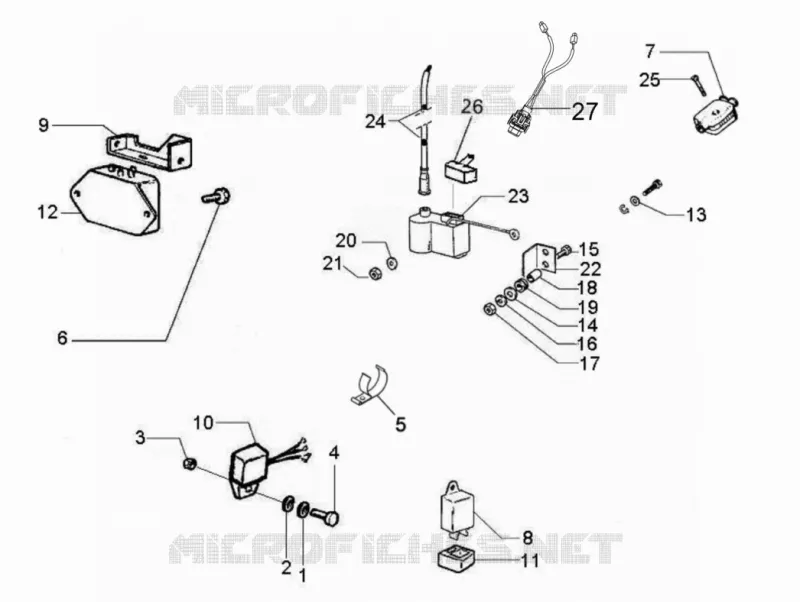

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
