Engine displacement
125
2
Model
S
3
Year
2011
4
Trim
S 4T ie E3
5
Parts Catalog
Front shield
6

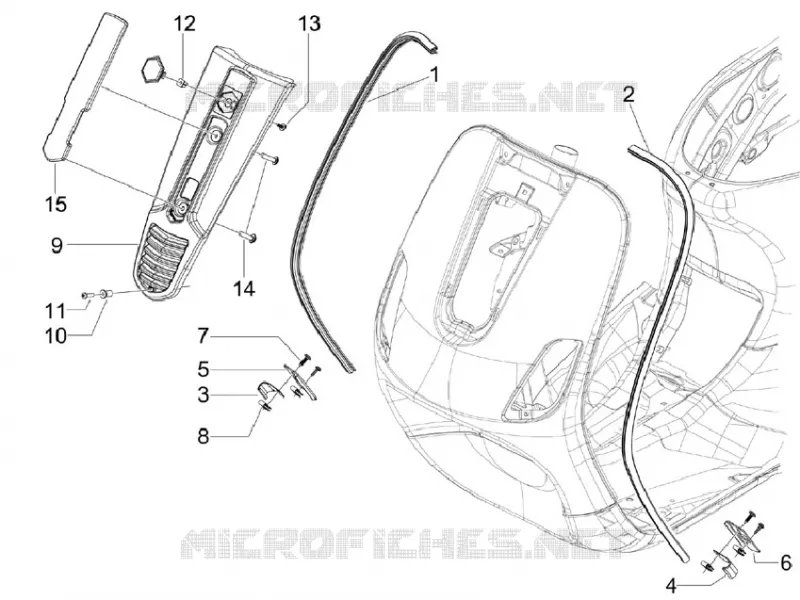

Parts Diagram
Parts Catalog
Rear suspension - Shock absorber/s
by
Flywheel magneto
Front shield
1
2
3
4
5
6
7
8
9
9
10
11
12
13
14
15
1
Right-hand shield edge
622188
£38,70 Unit Price incl. VAT
2
Left-hand shield edge
622187
£38,70 Unit Price incl. VAT
3
Butt strap DX
299965
£3,17 Unit Price incl. VAT
4
Butt strap SX
299964
£3,17 Unit Price incl. VAT
5
Right lower bracket of the leg shield back plate fix
654913
£15,56 Unit Price incl. VAT
6
Left lower bracket of the leg shield back plate fix
654899
£15,56 Unit Price incl. VAT
7
Plug screw
268596
£0,62 Unit Price incl. VAT
8
Spring plate
CM017403
£0,90 Unit Price incl. VAT
9
Steering column cover
65488300VL
£133,75 Unit Price incl. VAT
9
Steering column cover
65488350AI
Not Available
9
Steering column cover
65488300ND
£133,75 Unit Price incl. VAT
9
Steering column cover
65488350BR
Not Available
9
Steering column cover
65488350R7
£118,27 Unit Price incl. VAT
10
Rubber w/ insert M4
AP8144564
£2,52 Unit Price incl. VAT
11
screw
018544
Not Available
12
Expansion plug
199190
£0,17 Unit Price incl. VAT
13
Self tapping screw L=20 mm
267958
£0,76 Unit Price incl. VAT
14
Self tapping screw
297498
£0,60 Unit Price incl. VAT
15
Front moulding
654272
£44,06 Unit Price incl. VAT
