Parts Catalog
Front glove-box - Knee-guard panel
6

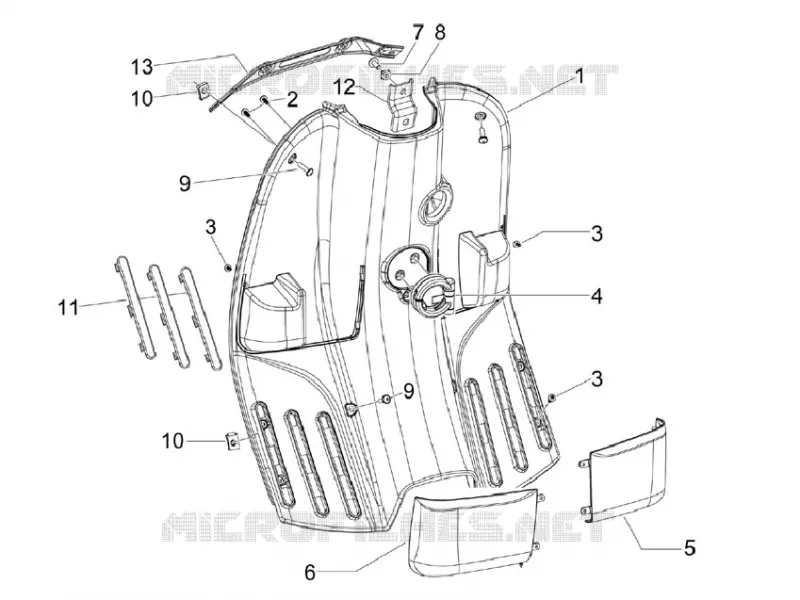

Parts Diagram
Parts Catalog
Cylinder-piston-wrist pin unit
by
Engine, assembly
Front glove-box - Knee-guard panel
1
2
3
3
3
4
5
6
7
8
9
9
10
10
11
12
13
1
Painted leg shield back plate
65711800R7
Not Available
1
Painted leg shield back plate
65711800BR
£123,78 Unit Price incl. VAT
1
Counter shield
657118
£95,17 Unit Price incl. VAT
1
Painted leg shield back plate
65711800VL
£111,20 Unit Price incl. VAT
1
Painted leg shield back plate
65711820AI
Not Available
1
Painted leg shield back plate
65711800ND
£111,20 Unit Price incl. VAT
2
Screw M4,2x13
259349
£0,79 Unit Price incl. VAT
3
Self tapping screw
297498
£0,60 Unit Price incl. VAT
4
Bag holder hook
575819
£14,98 Unit Price incl. VAT
5
Right glovebox
65429500AI
£37,90 Unit Price incl. VAT
5
Right glovebox
65429500VL
£42,56 Unit Price incl. VAT
5
Right glovebox
65429500ND
£42,56 Unit Price incl. VAT
5
Right glovebox
65429500BR
Not Available
5
Right glovebox
654295
£35,62 Unit Price incl. VAT
5
Right glovebox
65429500R7
Not Available
6
Left glovebox
65429400R7
Not Available
6
Left glovebox
65429400VL
£42,56 Unit Price incl. VAT
6
Left glovebox
654294
£35,62 Unit Price incl. VAT
6
Left glovebox
65429400BR
Not Available
6
Left glovebox
65429400ND
£42,56 Unit Price incl. VAT
6
Left glovebox
65429400AI
£37,90 Unit Price incl. VAT
7
Screw M4,2x13
259349
£0,79 Unit Price incl. VAT
8
Spring plate
CM017409
£1,27 Unit Price incl. VAT
9
Screw w/ flange
AP8152338
£2,34 Unit Price incl. VAT
10
Spring plate M5
248419
£2,00 Unit Price incl. VAT
11
Packing
657130
Not Available
12
Leg shield back plate fixing central bracket
654292
£15,66 Unit Price incl. VAT
13
Upper fixing bracket of the leg shield back plate with U.P.
654290
£21,38 Unit Price incl. VAT
