Engine displacement
150
2
Model
S
3
Year
2009
4
Trim
S 4T
5
Parts Catalog
Front glove-box - Knee-guard panel
6
Parts Diagram
Parts Catalog
Locks
by
Plates - Emblems
Front glove-box - Knee-guard panel
1
2
3
3
3
4
5
6
7
8
9
9
10
10
11
12
13
1
Painted leg shield back plate
65711800R7
Not Available
1
Painted leg shield back plate
65711800BR
£123,78 Unit Price incl. VAT
1
Counter shield
657118
£95,17 Unit Price incl. VAT
1
Painted leg shield back plate
65711820AI
Not Available
1
Painted leg shield back plate
65711800ND
£111,20 Unit Price incl. VAT
2
Screw M4,2x13
259349
£0,79 Unit Price incl. VAT
3
Self tapping screw
297498
£0,60 Unit Price incl. VAT
4
Bag holder hook
575819
£14,98 Unit Price incl. VAT
5
Right glovebox
65429500AI
£37,90 Unit Price incl. VAT
5
Right glovebox
65429500ND
£42,56 Unit Price incl. VAT
5
Right glovebox
65429520AI
Not Available
5
Right glovebox
65429500BR
Not Available
5
Right glovebox
654295
£35,62 Unit Price incl. VAT
5
Right glovebox
65429500R7
Not Available
6
Left glovebox
65429400R7
Not Available
6
Left glovebox
65429420AI
Not Available
6
Left glovebox
654294
£35,62 Unit Price incl. VAT
6
Left glovebox
65429400BR
Not Available
6
Left glovebox
65429400ND
£42,56 Unit Price incl. VAT
6
Left glovebox
65429400AI
£37,90 Unit Price incl. VAT
7
Self-tap screw
576189
Not Available
7
Screw M4,2x13
259349
£0,79 Unit Price incl. VAT
8
Spring plate
CM017409
£1,27 Unit Price incl. VAT
9
Screw w/ flange
AP8152338
£2,34 Unit Price incl. VAT
10
Spring plate M5
248419
£2,00 Unit Price incl. VAT
11
Packing
657130
Not Available
12
Leg shield back plate fixing central bracket
654292
£15,66 Unit Price incl. VAT
13
Upper fixing bracket of the leg shield back plate with U.P.
654290
£21,38 Unit Price incl. VAT

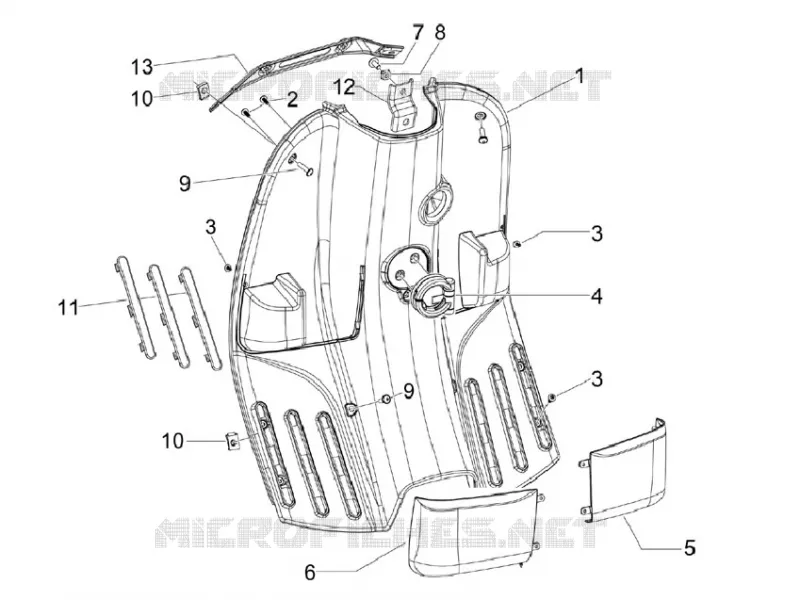

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
