Engine displacement
150
2
Model
S
3
Year
2009
4
Trim
S 4T
5
Parts Catalog
Fork/steering tube - Steering bearing unit
6
Parts Diagram
Parts Catalog
Central cover - Footrests
by
Remote control switches - Battery - Horn
Fork/steering tube - Steering bearing unit
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
21
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
1
Front shock absorber
665766
£62,34 Unit Price incl. VAT
2
Washer
012535
Not Available
3
Nut
021210
Not Available
4
Hex socket screw M8x40
149104
£1,57 Unit Price incl. VAT
5
Pad
174085
£2,87 Unit Price incl. VAT
6
Washer
174088
£1,62 Unit Price incl. VAT
7
Pad
174874
£3,66 Unit Price incl. VAT
8
Spring washer
709047
£0,70 Unit Price incl. VAT
9
Bracket
273693
£16,19 Unit Price incl. VAT
10
screw
031120
Not Available
11
Spring washer 13,75x8,15x4,5
016408
Not Available
12
Nut M8x6,5
020108
Not Available
13
Steering tube complete with arm
6501315
£311,69 Unit Price incl. VAT
14
Complete rear suspension arm
651482
Not Available
15
Roller cage
198513
£15,49 Unit Price incl. VAT
16
Gasket
006731
Not Available
17
Gasket ring
119219
£1,58 Unit Price incl. VAT
18
Piston pin
177451
£22,88 Unit Price incl. VAT
19
Lower steering bearing
CM061304
Not Available
19
Lower steering bearing
650075
Not Available
19
Lower steering bearing
56298R
Not Available
21
Upper thrust ring
56297R
Not Available
21
Upper thrust ring
CM061303
Not Available
21
Upper thrust ring
650693
Not Available
23
Steering tube ring nut
011109
Not Available
23
Steering tube ring nut
0111094
Not Available
24
Washer of the steering
0037514
Not Available
24
Washer of the steering
003751
Not Available
25
Front suspension arm cover
561433
Not Available
25
Front suspension arm cover
649113
£22,19 Unit Price incl. VAT
26
Metric screw TBC
575249
£0,62 Unit Price incl. VAT
27
Spring plate M6
254485
£1,64 Unit Price incl. VAT
28
Axle plug
665657
£3,40 Unit Price incl. VAT
29
Cap
177609
£3,76 Unit Price incl. VAT
30
Split pin
012789
Not Available
31
Nut
021114
Not Available
32
Front wheel hub
560284
Not Available
33
Snap ring
006635
Not Available
34
Bearing
177610
£20,51 Unit Price incl. VAT
35
Hex socket screw M6x20
271147
Not Available
36
Front wheel hub
560284
Not Available
37
Ring gear counts Km socket
267818
£33,11 Unit Price incl. VAT
38
Roller cage
177442
£7,33 Unit Price incl. VAT
39
Gasket ring
177443
£3,55 Unit Price incl. VAT
40
Brake disc
56395R
£61,37 Unit Price incl. VAT
41
Not available
5602865
£182,66 Unit Price incl. VAT
41
Not available
560286
Not Available
42
Ring
177494
£4,73 Unit Price incl. VAT
43
Drawn cap
177436
Not Available
44
Pinion
267819
£3,60 Unit Price incl. VAT
45
Maintenance
564053
Not Available
46
Pad
266841
£1,86 Unit Price incl. VAT
47
Plate
269118
Not Available
48
Washer Ø5,3xØ10x0,5
006975
Not Available
49
screw M5x16
031058
Not Available
50
Circlip
006422
Not Available
51
Washer
177414
£1,62 Unit Price incl. VAT
52
Ring
177521
£1,62 Unit Price incl. VAT
53
Washer
177445
£1,62 Unit Price incl. VAT
54
O-ring
177408
£1,33 Unit Price incl. VAT
55
Suspension cover
654268
£12,49 Unit Price incl. VAT

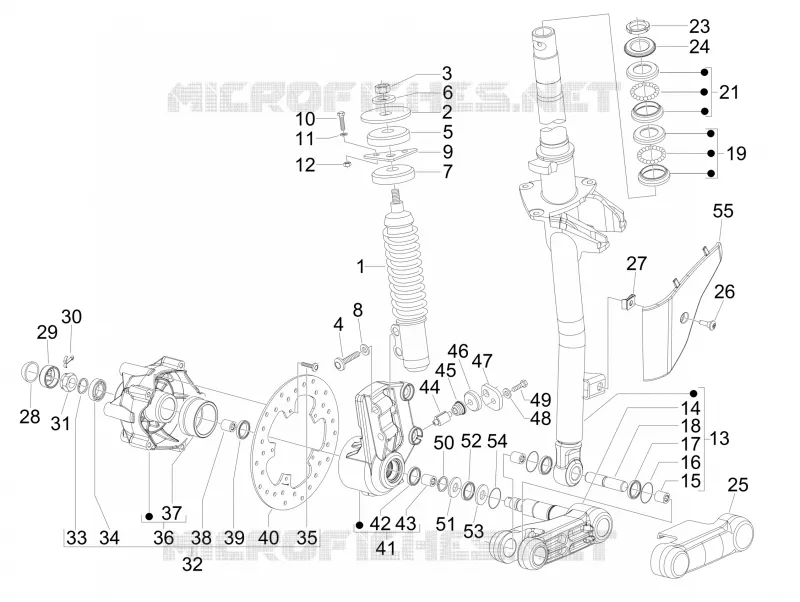

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
