1
Engine displacement
125
2
Model
BEVERLY
3
Year
2005
4
Trim
Beverly
5
Parts Catalog

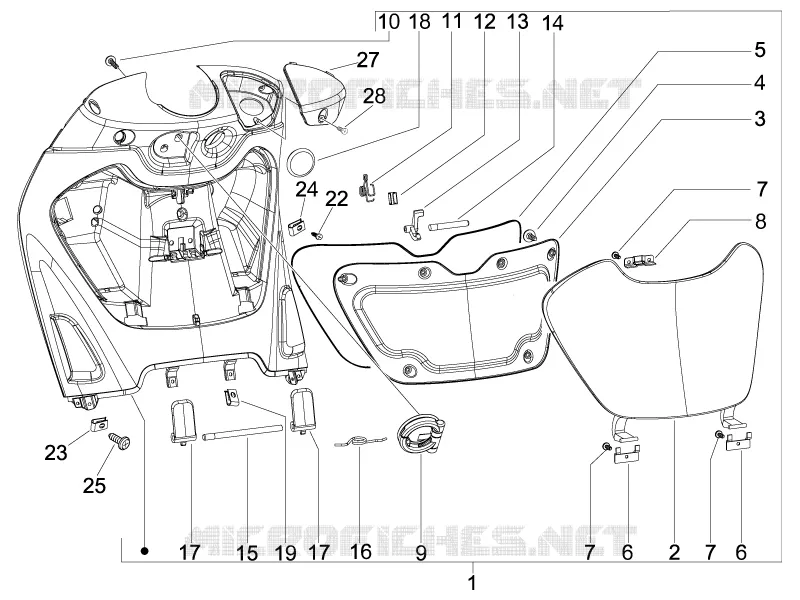

Front glove-box - Knee-guard panel
6
Parts Diagram
Parts Catalog
Stand/s
by
Central cover - Footrests
Front glove-box - Knee-guard panel
28
27
25
24
23
22
19
18
17
17
16
15
14
13
12
11
10
9
8
7
7
7
6
6
5
4
3
2
1
1
Top box
62363900F2
Not Available
1
GLOVEBOX COMPARTMENT
6236390087
Not Available
1
GLOVEBOX COMPARTMENT (RAW) BV
623639
Not Available
1
Top box
62363900D9
Not Available
1
Top box
62363900RF
Not Available
1
Top box
62363900ND
Not Available
1
GLOVEBOX COMPARTMENT (RAW) BV
62363900DE
Not Available
1
GLOVEBOX COMPARTMENT
62363900AF
Not Available
2
Flap
621672000P
£55,40 Unit Price incl. VAT
2
Glove compartment door
621672
Not Available
3
Counter flap
576794
£36,44 Unit Price incl. VAT
4
Self tapping screw
296141
£1,39 Unit Price incl. VAT
5
Flap packing
CM006303
Not Available
6
Door fixing bracket
257614
£1,72 Unit Price incl. VAT
7
Self tapping screw
297498
£0,60 Unit Price incl. VAT
8
Square
252420
£3,88 Unit Price incl. VAT
9
Bag holder hook
575819
£14,98 Unit Price incl. VAT
10
Screw M4,2x13
259349
£0,79 Unit Price incl. VAT
11
Spring
577005
Not Available
12
Catch spring
299693
£0,70 Unit Price incl. VAT
13
Pawl
575607
£3,14 Unit Price incl. VAT
14
Pin
270147
Not Available
15
Pin
575062
£3,35 Unit Price incl. VAT
16
Spring
575610
Not Available
17
Lever
577861
£5,75 Unit Price incl. VAT
18
Cover
190567
£8,02 Unit Price incl. VAT
19
Spring plate
CM017410
£0,71 Unit Price incl. VAT
20
Spring plate
CM017410
£0,71 Unit Price incl. VAT
21
screw 4,2x19
258249
£0,73 Unit Price incl. VAT
22
Screw M6x16
272836
£1,13 Unit Price incl. VAT
23
Spring plate
CM017410
£0,71 Unit Price incl. VAT
24
Spring plate M6
254485
£1,64 Unit Price incl. VAT
25
screw 4,2x19
258249
£0,73 Unit Price incl. VAT
26
Screw M6x16
272836
£1,13 Unit Price incl. VAT
27
Self tapping screw
297498
£0,60 Unit Price incl. VAT
28
Coolant insp. door
62166900DE
Not Available
28
FLAP
62166900RM
Not Available
28
FLAP
62166900AF
Not Available
28
Flap
62166900RF
Not Available
28
Coolant insp. door
62166900F2
Not Available
28
Coolant insp. door
62166900ND
Not Available
28
COVER PORT INSP. LIQ. C.
6216690087
Not Available
28
Flap
62166900D9
Not Available
28
COVER PORT INSP. LIQ. C.
62166900EI
Not Available
28
Coolant insp. door
621669
£52,02 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
