1
Engine displacement
125
2
Model
BEVERLY
3
Year
2005
4
Trim
Beverly
5
Parts Catalog

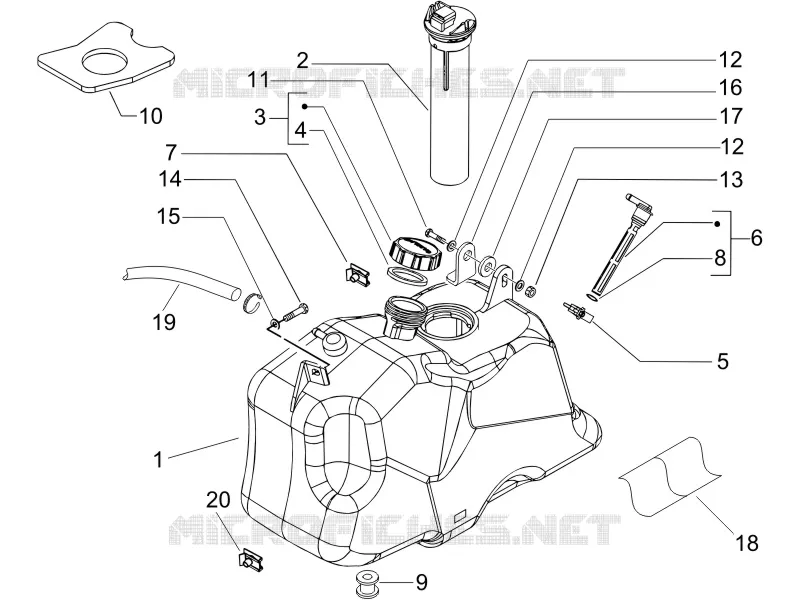

Fuel tank
6
Parts Diagram
Parts Catalog
Locks
by
Supply system
Fuel tank
20
19
18
17
16
15
14
13
12
12
11
10
9
8
7
6
5
4
3
2
1
1
Tank
622252
Not Available
2
Indicator fuel level
CM025706
£133,62 Unit Price incl. VAT
3
Plug
259832
£8,71 Unit Price incl. VAT
4
Tank cover gasket
258160
£4,51 Unit Price incl. VAT
5
Hose clamp
577557
Not Available
6
Complete coupling
574358
Not Available
7
Spring plate M6
254485
£1,64 Unit Price incl. VAT
8
Gasket
196868
£3,14 Unit Price incl. VAT
9
Elastic drift
463195
Not Available
10
Fuel recovery tank
577133
Not Available
11
Screw w/ flange M6x25
414837
Not Available
12
Flat washer
270216
£0,65 Unit Price incl. VAT
13
Self locking nut
012138
Not Available
14
Hex screw M6x22
031091
Not Available
14
Hex screw M6x20
018639
Not Available
15
Washer
078307
Not Available
16
PLATE
622305
Not Available
17
Spacer
622306
£1,15 Unit Price incl. VAT
18
Guard
580160
Not Available
19
Fuel pipe
CM011901
Not Available
20
Hose clamp
847778
£1,18 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
