Parts Catalog
Rear suspension - Shock absorber/s
6
Parts Diagram
Parts Catalog
Side cover - Spoiler
by
Rear luggage rack

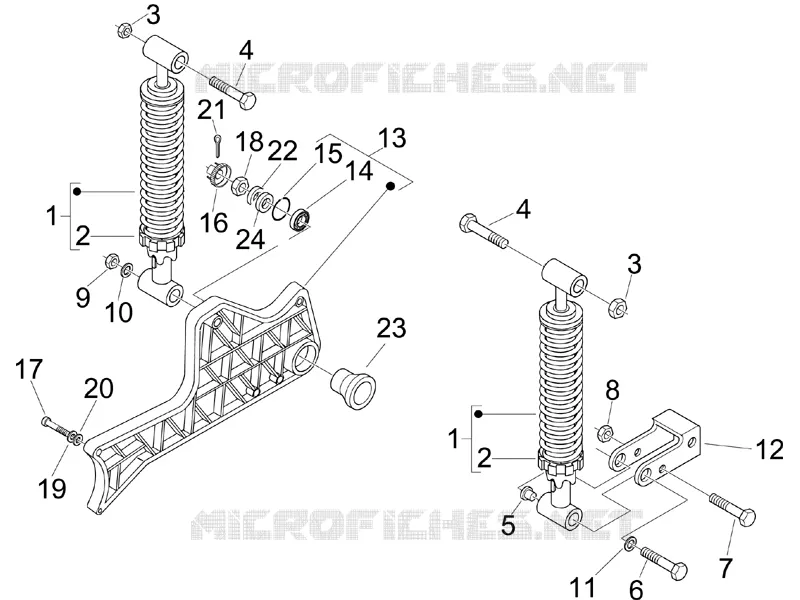

Rear suspension - Shock absorber/s
1
1
2
2
3
3
4
4
5
6
7
8
10
11
12
13
14
15
16
17
18
19
20
21
22
23
1
Shock absorber
56174R
Not Available
2
Housing
274860
Not Available
3
Self locking nut M10
232108
Not Available
3
Self locking nut M10
002440
Not Available
4
Screw w/ flange M10
268158
£1,87 Unit Price incl. VAT
5
Bush
597980
Not Available
6
Hex screw M10x45
015578
Not Available
7
Hex socket screw M8x50
844483
£0,65 Unit Price incl. VAT
8
Nut M8
020008
Not Available
10
Washer
016627
Not Available
11
Washer
709646
Not Available
12
plate
597979
£13,44 Unit Price incl. VAT
13
Suspension arm
599867
Not Available
14
Ball bearing
82545R
£22,90 Unit Price incl. VAT
14
Circlip
006647
Not Available
15
Ball bearing
82545R
£22,90 Unit Price incl. VAT
15
Circlip
006647
Not Available
16
Nut hold cap
194423
Not Available
17
Hex socket screw
826298
£1,20 Unit Price incl. VAT
18
Nut M16x13
563728
£2,48 Unit Price incl. VAT
19
Washer
013776
Not Available
20
Spring washer
709047
£0,70 Unit Price incl. VAT
21
Split pin
012789
Not Available
22
Spacer
597528
£7,33 Unit Price incl. VAT
23
Wheel spacer
848039
£25,44 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
