1
Engine displacement
250
2
Model
BEVERLY
3
Year
2005
4
Trim
Beverly
5
Parts Catalog
Cylinder-piston-wrist pin unit
6
Parts Diagram
Parts Catalog
Front shield
by
Voltage Regulators - Electronic Control Units (ecu) - H.T. Coil

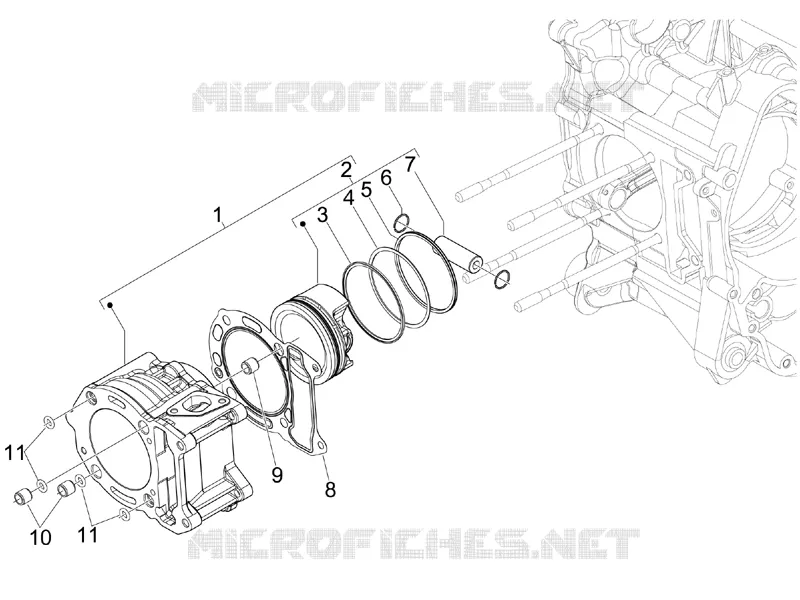

Cylinder-piston-wrist pin unit
1
2
3
4
5
6
7
8
9
10
11
11
1
Cylinder with piston
843517
£458,80 Unit Price incl. VAT
2
Complete piston cat.D
8435190004
£148,84 Unit Price incl. VAT
2
Complete piston cat.B
8435190002
£148,84 Unit Price incl. VAT
2
Complete piston cat.A
8435190001
£148,84 Unit Price incl. VAT
2
Complete piston cat.C
8435190003
£148,84 Unit Price incl. VAT
3
Scraper ring 72x1
484908
£39,19 Unit Price incl. VAT
4
Scraper ring 72x2,5
486363
£31,91 Unit Price incl. VAT
5
Ring 72x1.5
830486
£42,68 Unit Price incl. VAT
6
Snap ring
963486
£0,58 Unit Price incl. VAT
7
Piston pin
829529
£9,10 Unit Price incl. VAT
8
Cylinder base gasket 0,6 mm
875113
£14,40 Unit Price incl. VAT
8
Cylinder base gasket 0,8 mm
828148
Not Available
8
Cylinder base gasket 0,6 mm
828147
Not Available
8
Cylinder base gasket 0,4 mm
828146
Not Available
9
Locating dowel Ø7,5x12
277916
£6,38 Unit Price incl. VAT
10
Locating dowel Ø11x10
478115
Not Available
11
O-ring
478184
Not Available
11
O-ring
B017342
£1,13 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
