1
Engine displacement
250
2
Model
BEVERLY
3
Year
2005
4
Trim
Beverly
5
Parts Catalog

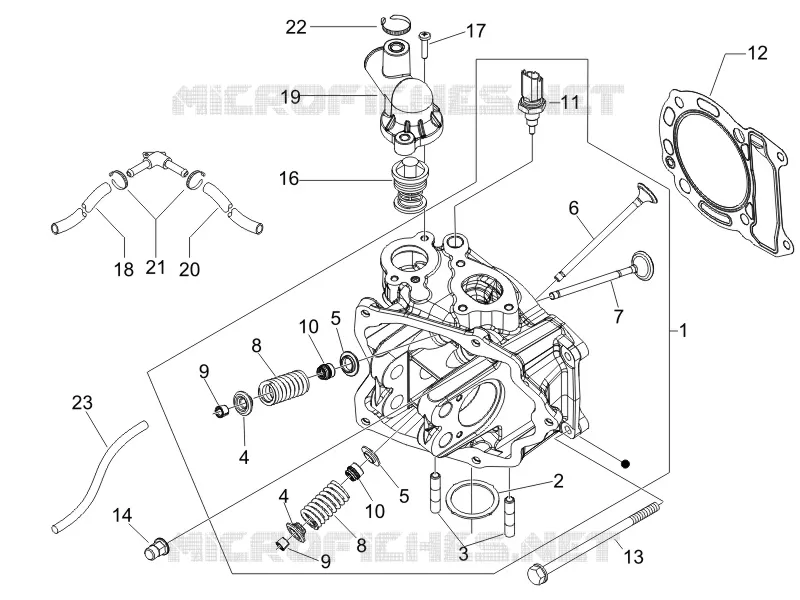

Head unit - Valve
6
Parts Diagram
Parts Catalog
Reduction unit
by
Front glove-box - Knee-guard panel
Head unit - Valve
1
2
3
4
4
5
5
8
8
9
9
10
10
11
12
13
14
16
17
18
19
20
21
22
23
1
Cylinder head
847595
Not Available
2
Exhaust pipe gasket
480853
£5,16 Unit Price incl. VAT
3
Stud bolt M7
435629
£1,87 Unit Price incl. VAT
4
Upper cap
483914
£5,71 Unit Price incl. VAT
5
Lower cap
483711
£2,12 Unit Price incl. VAT
8
Spring
828480
£11,04 Unit Price incl. VAT
9
Valve half-cone
285846
£1,98 Unit Price incl. VAT
10
Valve gasket ring
436438
£11,03 Unit Price incl. VAT
11
Thermistor
82622R
£25,90 Unit Price incl. VAT
12
Cylinder head gasket 0,3 mm
831174
£19,27 Unit Price incl. VAT
13
screw
844160
Not Available
14
Nut M8x1,25
411296
£1,97 Unit Price incl. VAT
14
Cap nut
832870
£2,58 Unit Price incl. VAT
15
Locating dowel Ø7,5x12
277916
£6,38 Unit Price incl. VAT
16
Thermostat
82831R
Not Available
16
Water thermostat
82710R
Not Available
17
Hex socket screw M5x20
845753
Not Available
18
Head-carb.by-pass pipe
827921
£5,26 Unit Price incl. VAT
19
Thermostat cover
834393
£10,25 Unit Price incl. VAT
20
By-pass pipe
434381
£9,40 Unit Price incl. VAT
21
Hose clamp
CM002902
£0,62 Unit Price incl. VAT
21
Hose clamp
CM002903
£0,24 Unit Price incl. VAT
22
Hose clamp
CM002902
£0,62 Unit Price incl. VAT
23
pipe
834394
Not Available
24
Locating dowel Ø11x10
478115
Not Available
25
O-ring
478184
Not Available

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
