Parts Catalog
Cooler pump
6
Parts Diagram
Parts Catalog
Fork/steering tube - Steering bearing unit
by
Fork's components (MVP)

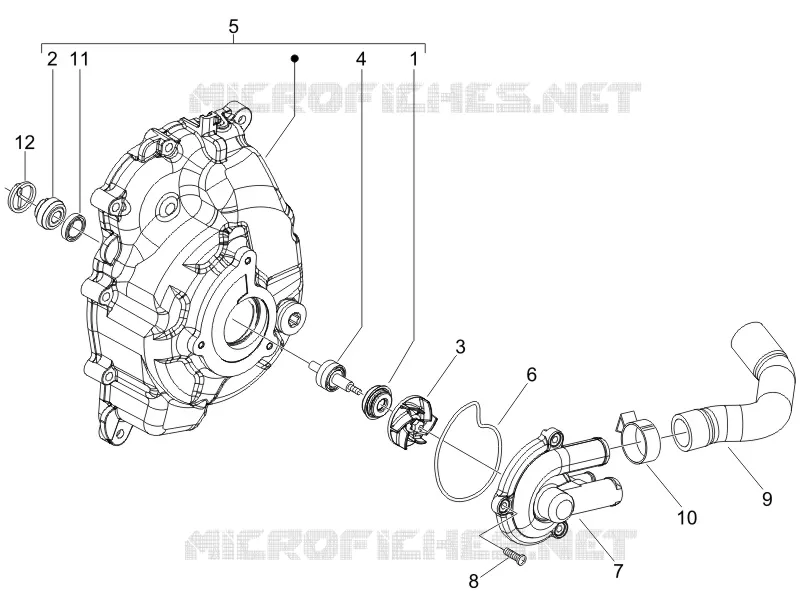

Cooler pump
1
2
3
4
5
6
7
8
9
10
11
12
1
Gasket ring
842595
Not Available
2
Pump impeller drive key
842389
£31,21 Unit Price incl. VAT
3
Water pump impeller cpl.
844730
£12,84 Unit Price incl. VAT
4
Water pump shaft assy.
8447595
£57,52 Unit Price incl. VAT
5
Flywheel cover cpl.
8483785
Not Available
6
O-ring
485080
£2,23 Unit Price incl. VAT
7
Water pump cover
486237
£26,18 Unit Price incl. VAT
8
Screw M5x22
828662
£1,33 Unit Price incl. VAT
9
pipe
840468
Not Available
9
Pump-cylinder hose
841130
Not Available
10
Hose clamp
CM001908
£2,06 Unit Price incl. VAT
11
Gasket
842455
Not Available
12
Drive key
842390
£3,37 Unit Price incl. VAT
21
Hose clamp
CM002903
£0,24 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
