1
Engine displacement
50
2
Model
RUNNER
3
Year
2005
4
Trim
Runner Pure Jet
5
Parts Catalog
Handlebars - Master cil.
6
Parts Diagram
Parts Catalog
Meter combination - Cruscotto
by
Swinging arm
Handlebars - Master cil.
1
2
3
4
5
6
8
9
10
11
12
12
13
13
14
15
16
17
18
19
20
21
22
23
1
Handlebar with U.P.
582116
Not Available
1
Handlebar
5821164
Not Available
2
Flat elastic washer with internal toothing 17x10,3x2
012543
Not Available
3
Nut M10
015330
Not Available
4
Flat washer
178790
£1,64 Unit Price incl. VAT
5
screw
223605
Not Available
6
Self tapping screw L=20 mm
267958
£0,76 Unit Price incl. VAT
6
TBCIC Screw
270793
£0,52 Unit Price incl. VAT
8
Front brakes pump assembly (Heng Tong)
CM074901
£71,10 Unit Price incl. VAT
9
Brake lever
646833
Not Available
10
Rear master cylinder Heng Tong
CM074801
£83,42 Unit Price incl. VAT
11
Brake lever
646833
Not Available
12
End terminal
271433
£23,57 Unit Price incl. VAT
13
screw M6x55
271434
Not Available
14
Throttle control sleeve assembly
CM060971
£55,56 Unit Price incl. VAT
15
Screw with bushing
123394
£2,69 Unit Price incl. VAT
16
Grip, l.h.
271452
£11,24 Unit Price incl. VAT
17
Grip, r.h.
271453
£7,04 Unit Price incl. VAT
18
Ring 38,3x27x1,2
562923
£0,48 Unit Price incl. VAT
19
Splitter control transmission
949592
£12,20 Unit Price incl. VAT
20
Terminal
114256
Not Available
21
Guard
147511
£1,39 Unit Price incl. VAT
22
Adjuster screw
269145
£2,58 Unit Price incl. VAT
23
Nut M6
020206
Not Available

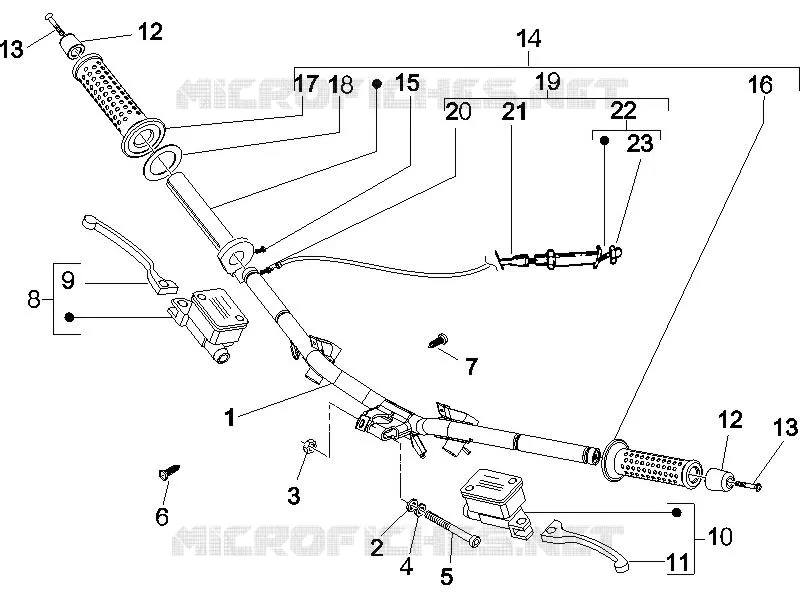

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
