1
Engine displacement
50
2
Model
RUNNER
3
Year
2005
4
Trim
Runner Pure Jet
5
Parts Catalog

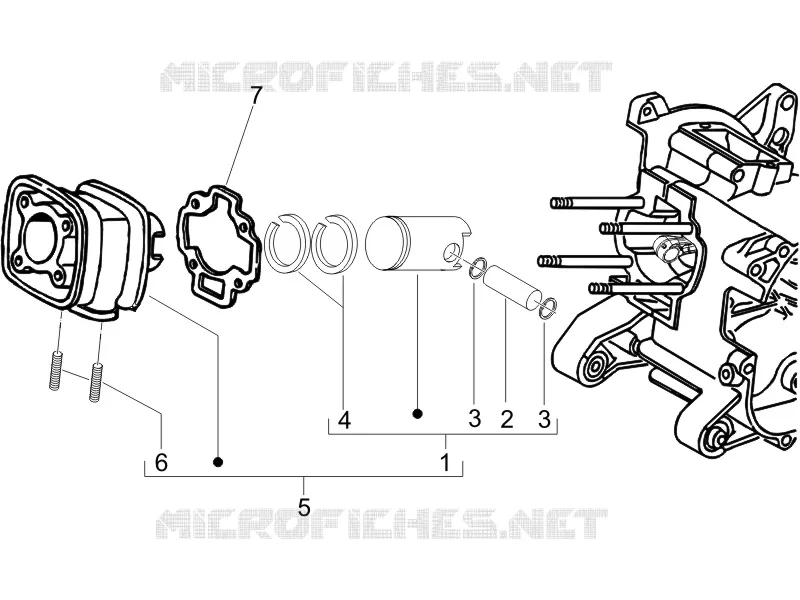

Cylinder-piston-wrist pin unit
6
Parts Diagram
Parts Catalog
Crankshaft
by
Cylinder head cover
Cylinder-piston-wrist pin unit
1
2
3
3
4
5
6
7
1
Pist.-wrist pin assy.
8335990003
Not Available
1
Pist.-wrist pin assy.
8335990004
Not Available
1
Pist.-wrist pin assy.
8335990001
Not Available
1
Pist.-wrist pin assy.
8335990002
Not Available
2
Piston pin
239404
£4,82 Unit Price incl. VAT
3
Stop ring
239455
£0,62 Unit Price incl. VAT
4
Gasket ring
825416
£6,18 Unit Price incl. VAT
5
Cylinder with piston 1M
833598
£222,62 Unit Price incl. VAT
6
Stud bolt M6
239397
£0,83 Unit Price incl. VAT
7
Gasket sp0,4
827301
£11,05 Unit Price incl. VAT
7
Gasket sp0,8
829633
£12,53 Unit Price incl. VAT
7
Gasket sp0,6
827303
£11,36 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
