Engine displacement
50
2
Model
RCR
3
Year
2004
4
Trim
RCR 50
5
Parts Catalog
Crankshaft assy-cylinder and piston
6
Parts Diagram
Parts Catalog
Rear brake
by
Speedometer and components
Crankshaft assy-cylinder and piston
1
2
3
4
5
5
6
7
8
9
10
11
12
12
13
14
14
15
16
17
18
18
19
20
21
1
Cylinder-piston, assy.
ODN00H05014121
Not Available
2
Pist.-wrist pin assy.
ODN00H02562091
Not Available
2
Pist.-wrist pin assy.
ODN00H02552091
Not Available
2
Pist.-wrist pin assy.
ODN00H02572091
Not Available
2
Pist.-wrist pin assy.
ODN00H02542091
Not Available
3
Ring
ODN00H02502111
Not Available
4
Piston pin
ODN00H02502121
Not Available
5
Circlip
ODN00H02501131
Not Available
6
Cylinder head
ODN00H02512013
Not Available
7
Gasket
ODN00H02505021
Not Available
8
Cylinder gasket
ODN00H02500041
Not Available
9
Drive shaft
ODN00H02506141
Not Available
10
Shaft
ODN00002025190
Not Available
11
Joint
ODN00H02500301
Not Available
12
Bearing
ODN00059220400
Not Available
13
Joint
ODN00E02500231
Not Available
14
Washer
ODN00002225220
Not Available
15
Nut
ODN00008202730
Not Available
16
Con-rod assy.
ODN00H05001011
Not Available
17
Roller cage
ODN00002125170
Not Available
18
Sec. screw
ODN00G03001091
Not Available
19
Fixing washer
ODN00003125280
Not Available
20
Thermal switch
ODN00H02302441
Not Available
21
Spark plug
438005
Not Available

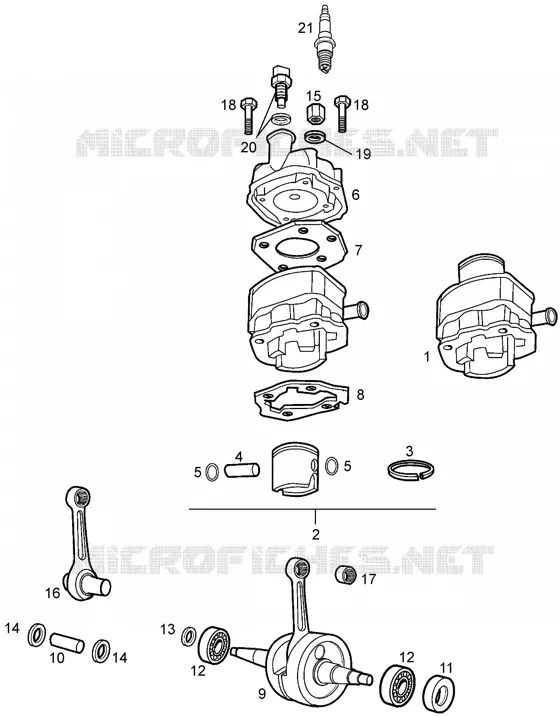

Find the detailed Crankshaft assy-cylinder and piston GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
